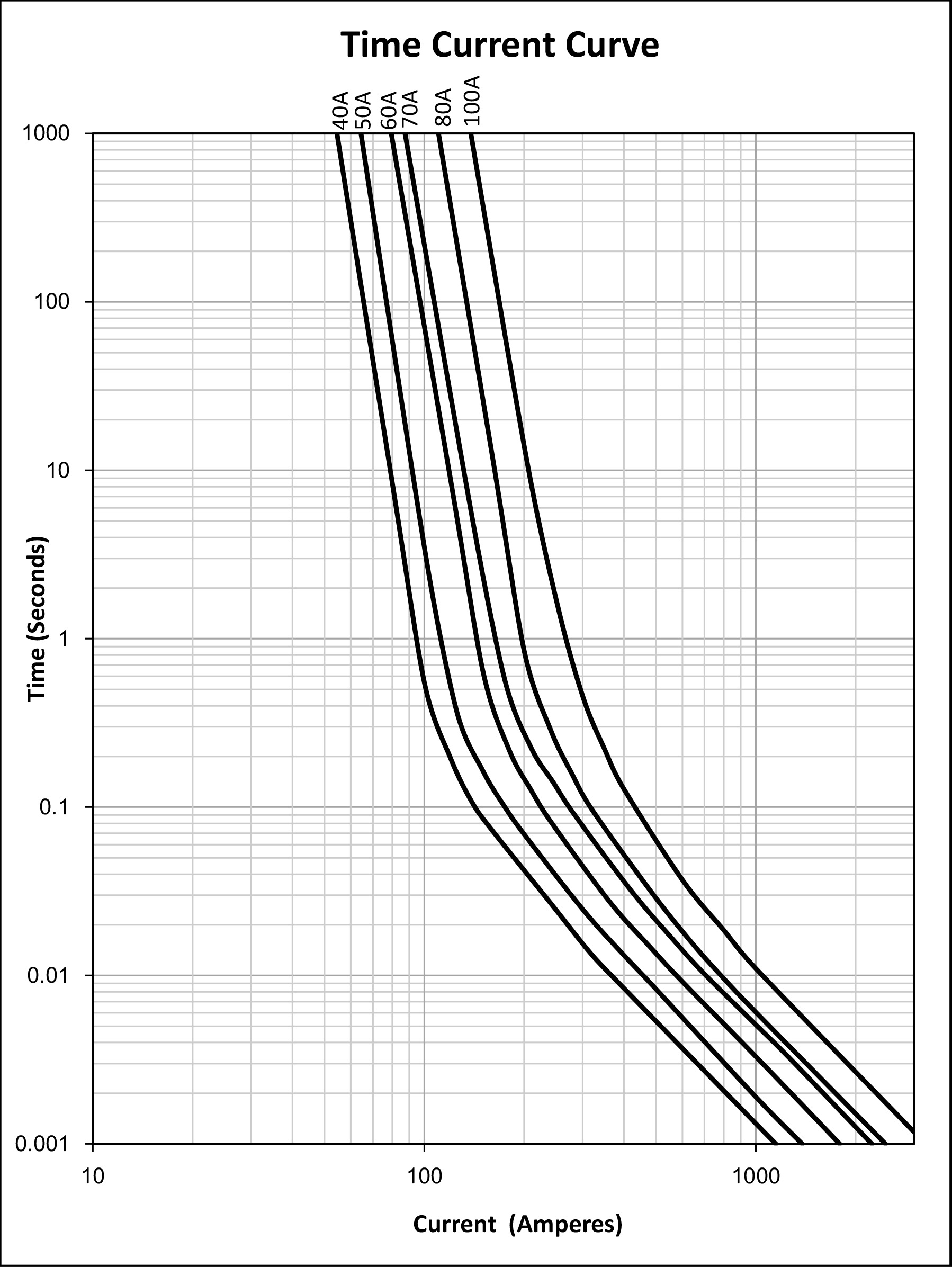

Time-Current Curves
Temperature rerating curve
Normal Operating Temperature: 25°C±2°C
Operating Temperature: -55°C to 125°C with proper correction factor applied.

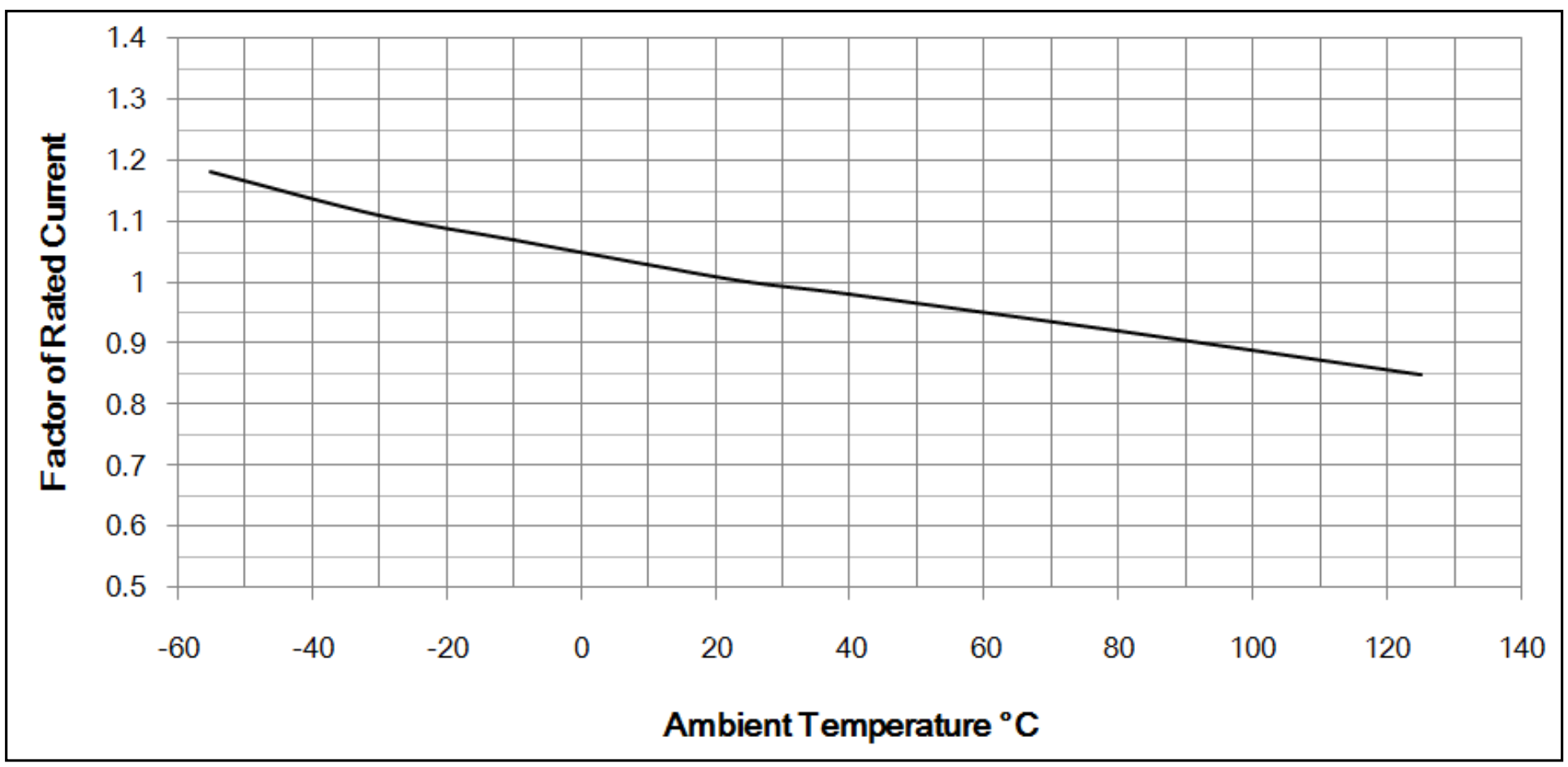

Chart of correction factor
Note: Rerating depicted in this curve is in addition to the standard derating of 25% for continuous operation.
Package and Minimum order QTY
1000pcs fuses in tape (width 24mm) and reel (dia. 13inch)
