Time-Current Characteristics

Transportation and Storage

During transportation and storage, should avoid water seepage and mechanical damage

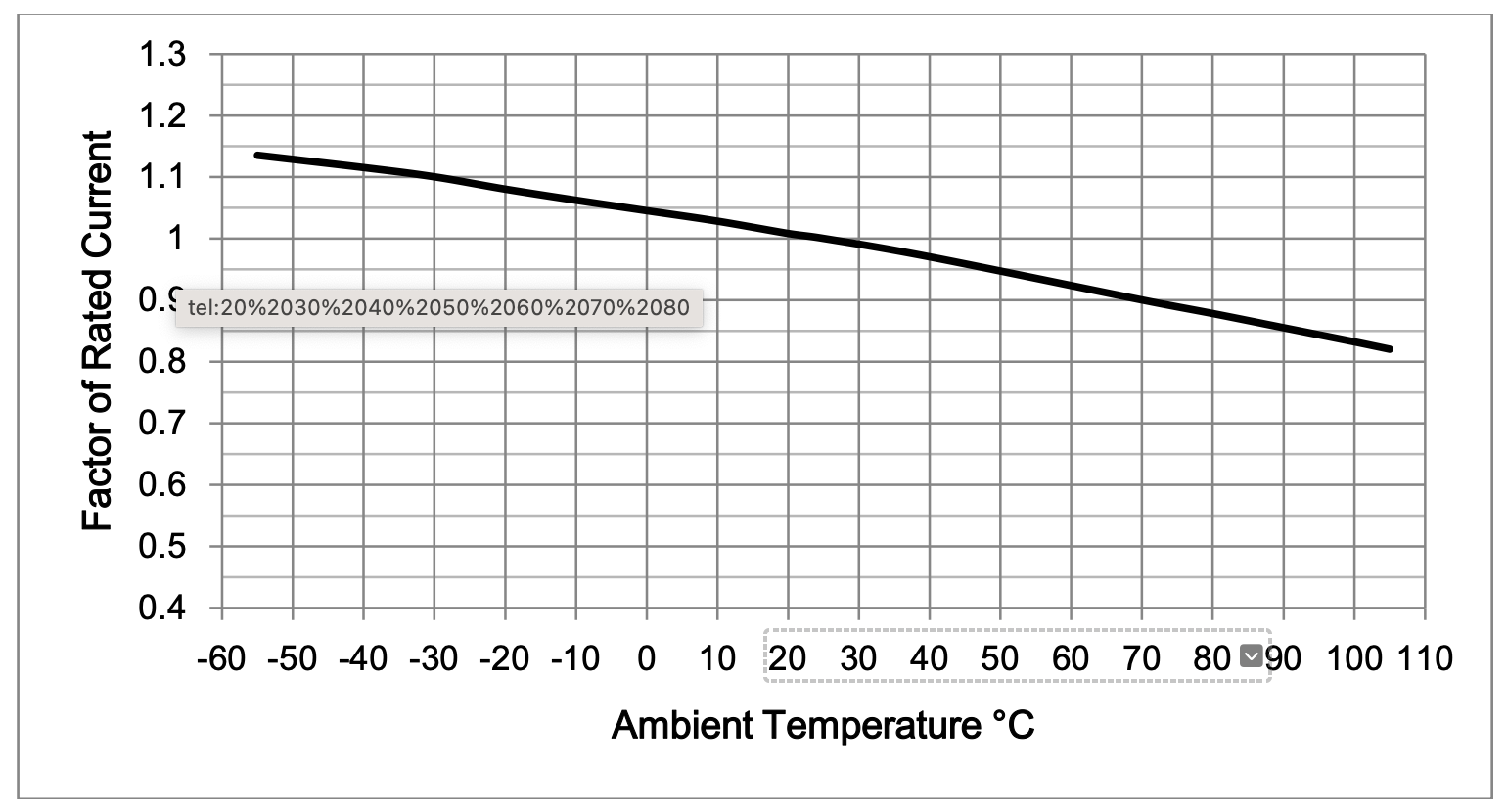

Temperature Re-Rating Curve

            Operation temperature: -40℃ to 105℃ with proper re-rating factor

*Rerating depicted in this curve is in addition to the standard derating of 25% for continuous operation. Example: For continuous operation at 70℃, the fuse should be re-rated as follows: I = (0.75)(0.9)In= (0.675)In

*The temperature re-rating curve represents nominal conditions. For questions about the temperature re-rating curve, please consult ASTM fuse technical support assistance.
