Catalog symbol:
• JKS-_-700
Description:

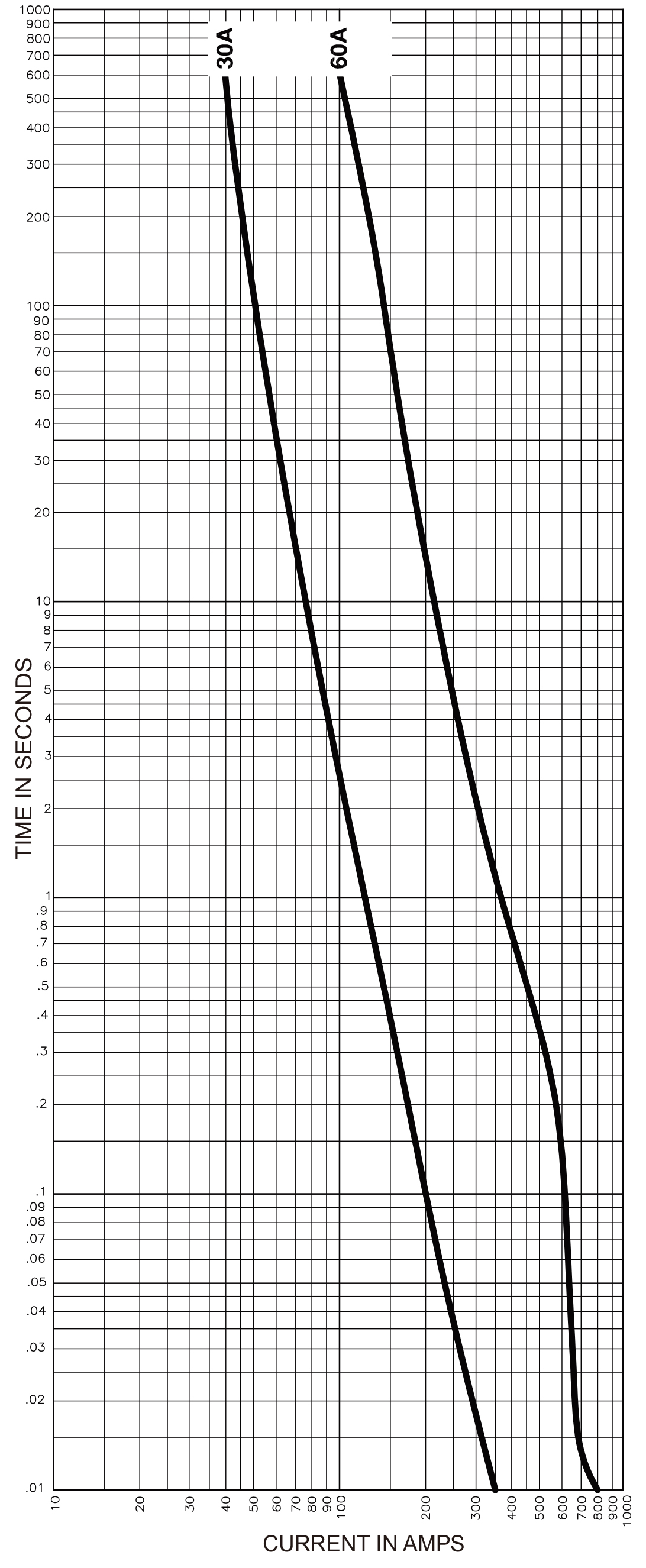

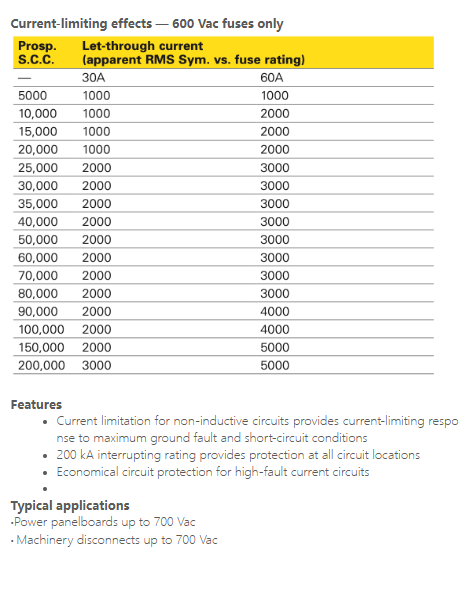

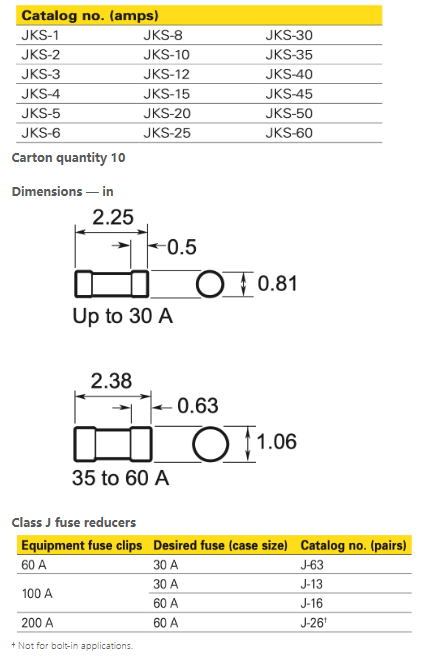

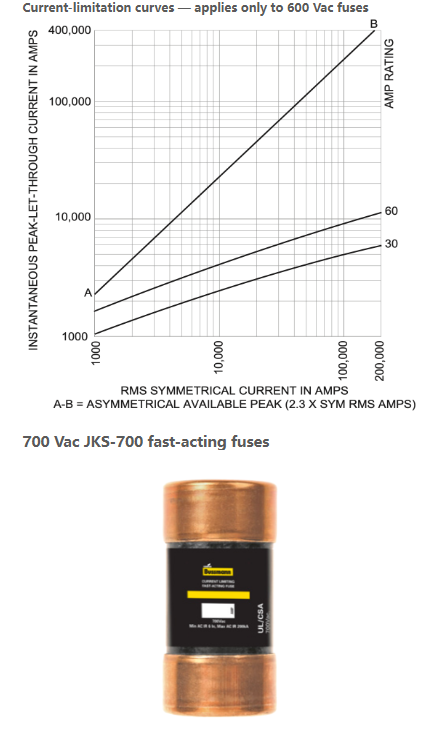

The JKS-700 is a fast-acting, current-limiting fuse that is UL Recognized and has CSA Component Acceptance for applications up to 700 Vac. The JKS-700 is available in ratings up to 60 amps with the same dimensions as a standard Class J fuses; but its voltage rating places it outside the standard Class J fuse class. The time- current curves shown for the 600 Vac fuses apply to the 700 Vac versions, but the current let-through curves do not.
Bussmann recommends the JM70100 modular fuse block and the JM70100-MW power distribution fuse block for the 30 amp case size JKS-700 fuses.
Ratings
Volts 700 Vac (or less)
Amps 25-60 A
IR
Minimum 6In
200 kA RMS Sym.
Operating class aR
Agency information
UL Recognized, 248-13 Semiconductor Fuses, File E56412
CSA Component Acceptance, C22.2 No 248.13 Semiconductor Fuses, Class 1422-30
