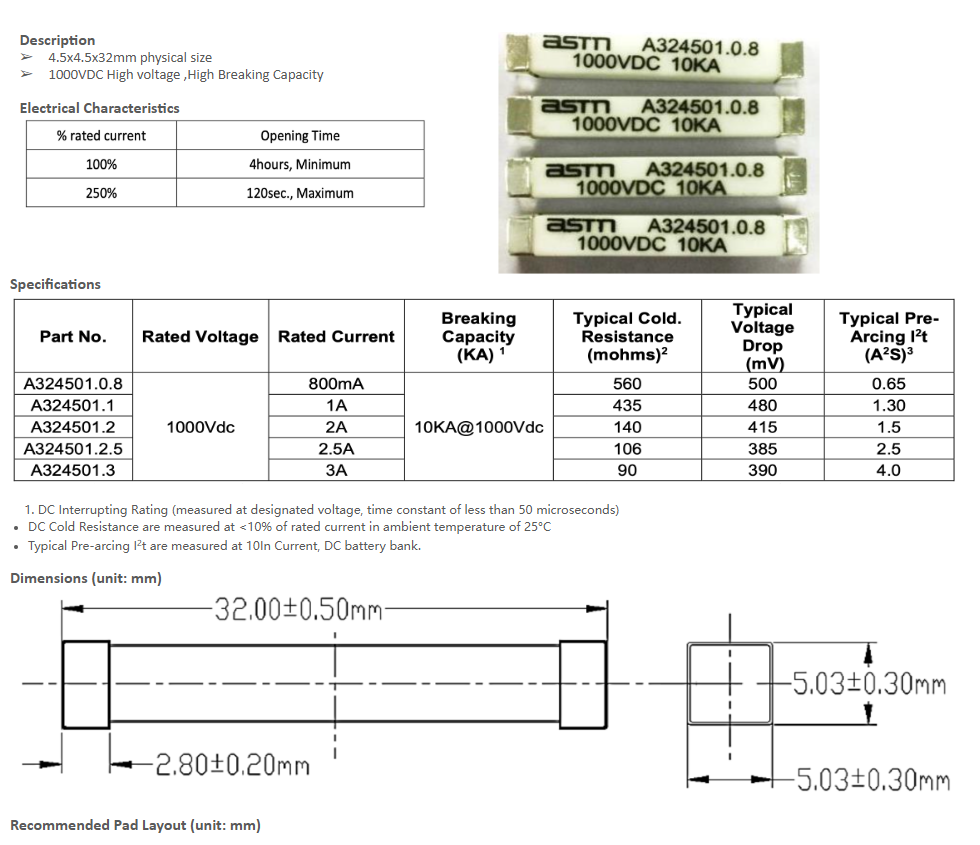

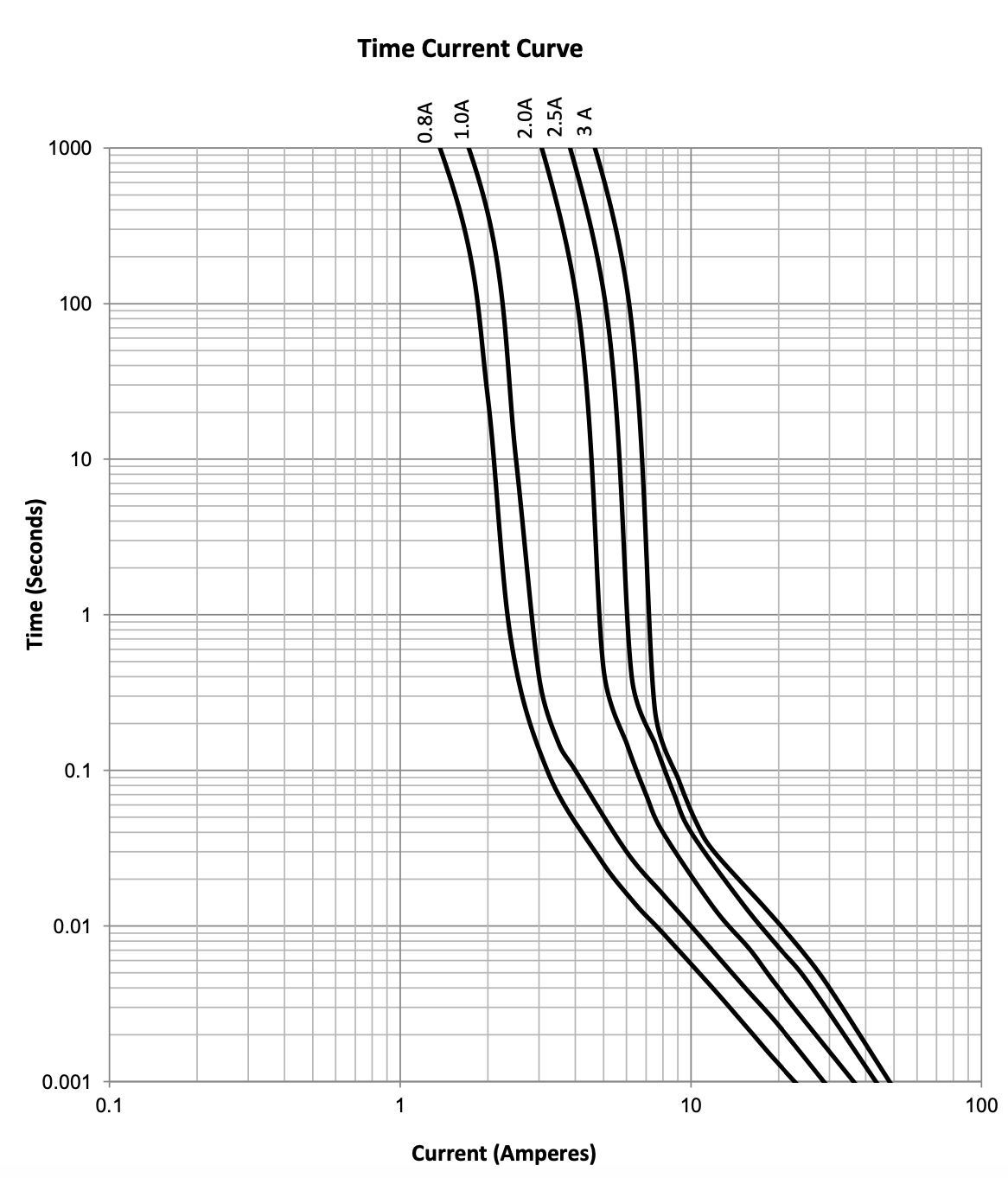

A324501 1000VDC 10KA 0.8-3A

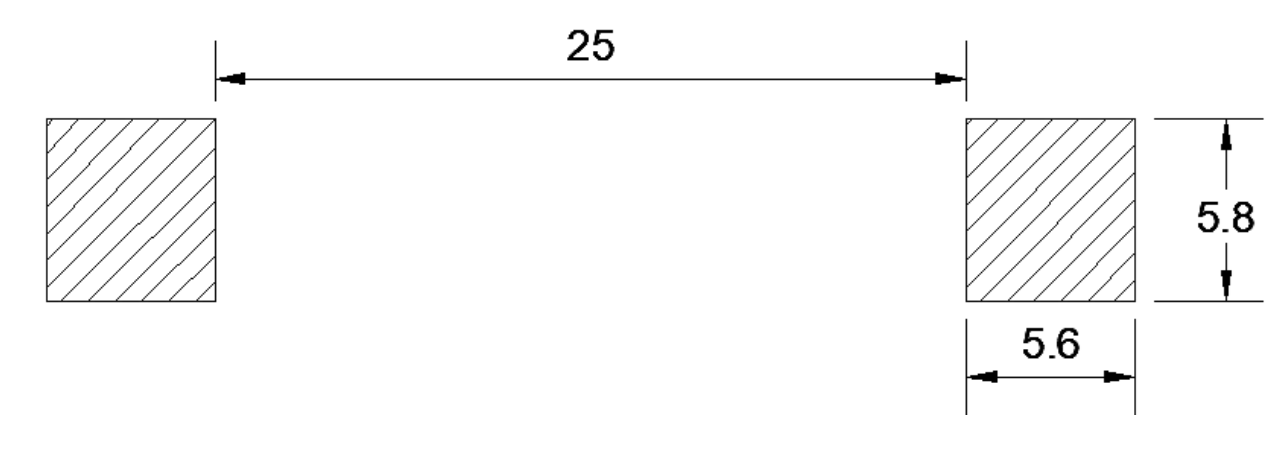

Recommended Pad Layout (unit: mm)

Note: above land pattern recommended for reflow soldering; for hand soldering, consider to make a larger pad.

Soldering Characteristics

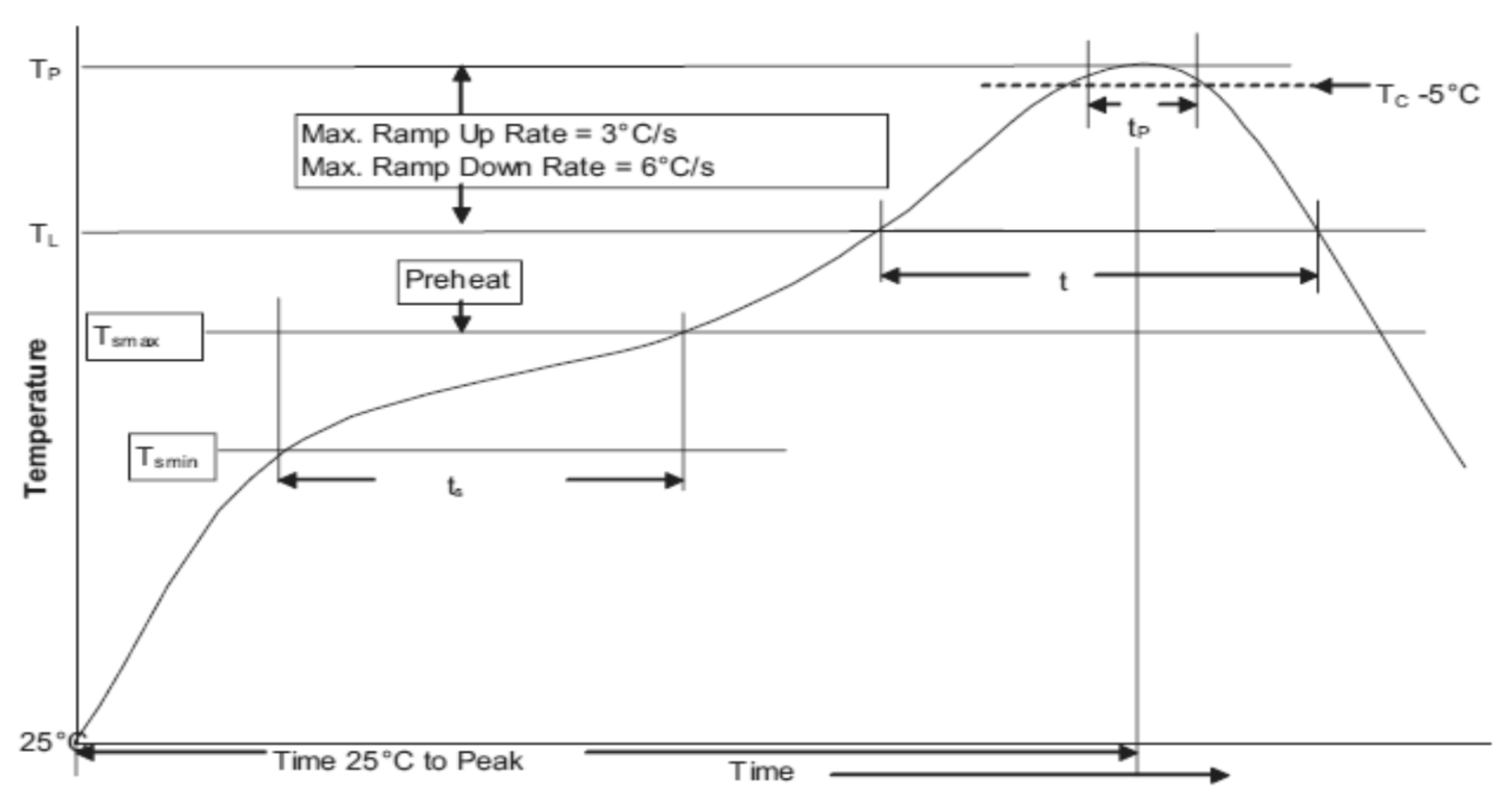

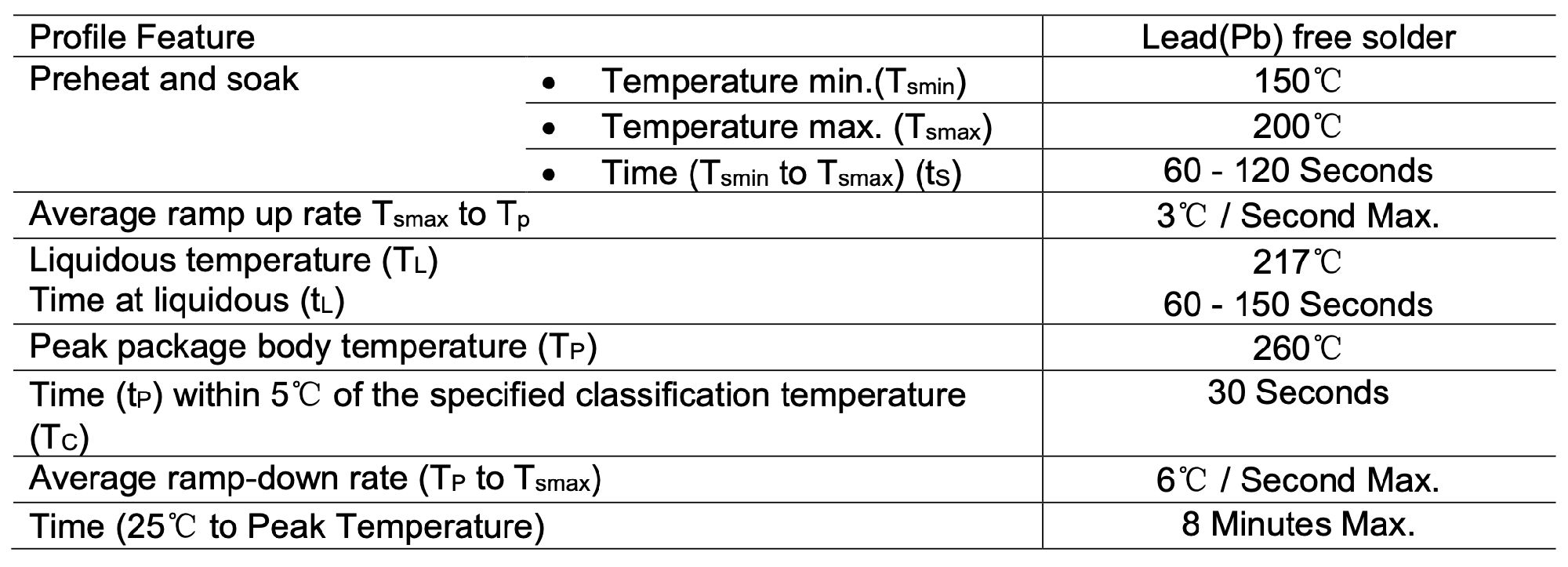

Reflow Soldering
• Temperature: 260° C
• Time: 30 Seconds Maximum

Manual Soldering (not recommended)• Temperature: 350° C
• Time: 5 Seconds Maximum

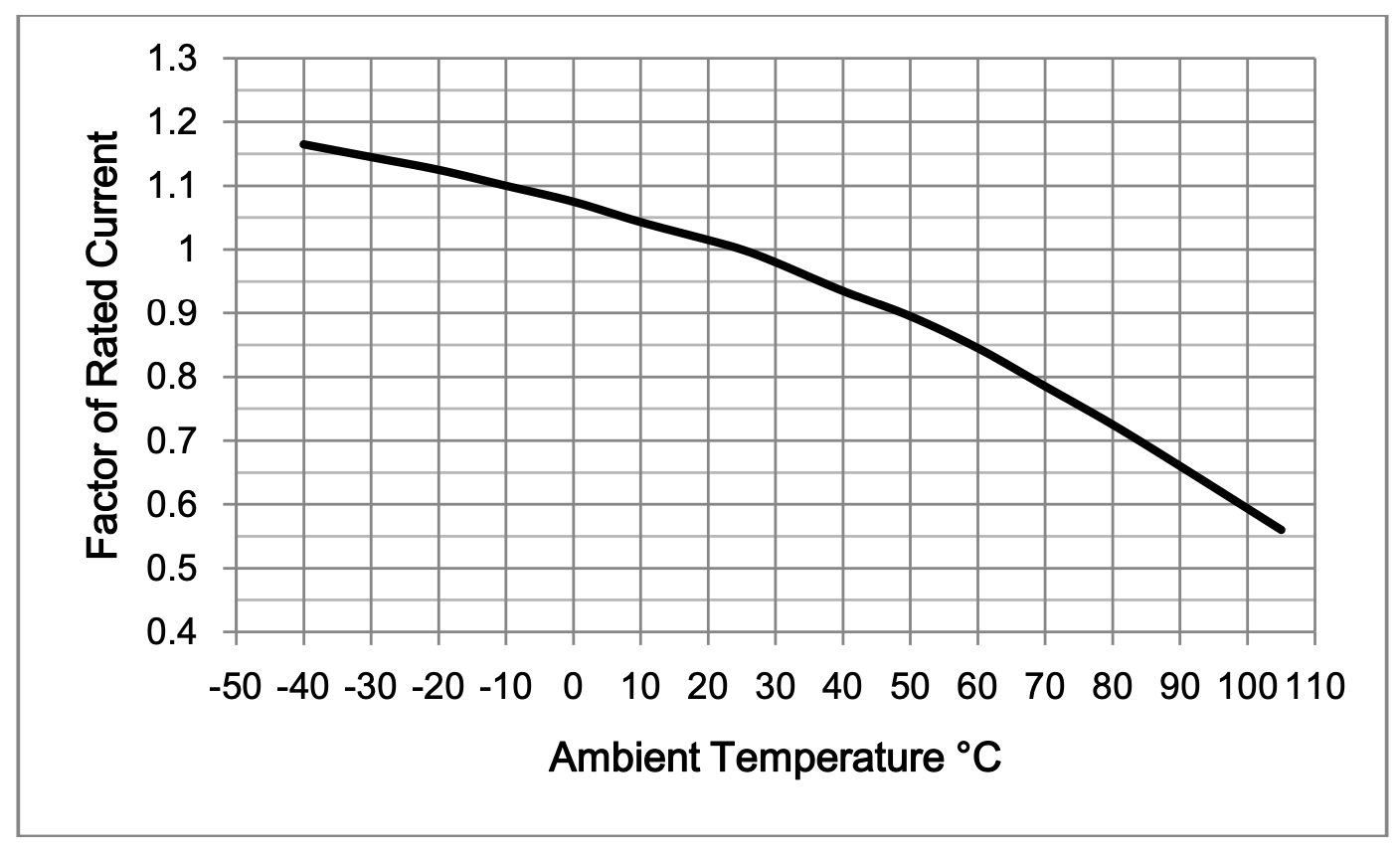

Temperature Re-rating curve

⚫ Normal Operating Temperature: 25°C
⚫ Operating Temperature: -40°C to 105°C with proper correction factor applied.

Package and Minimum order QTY

1000pcs fuses in tape (width 44mm) and reel (dia. 13inch)
