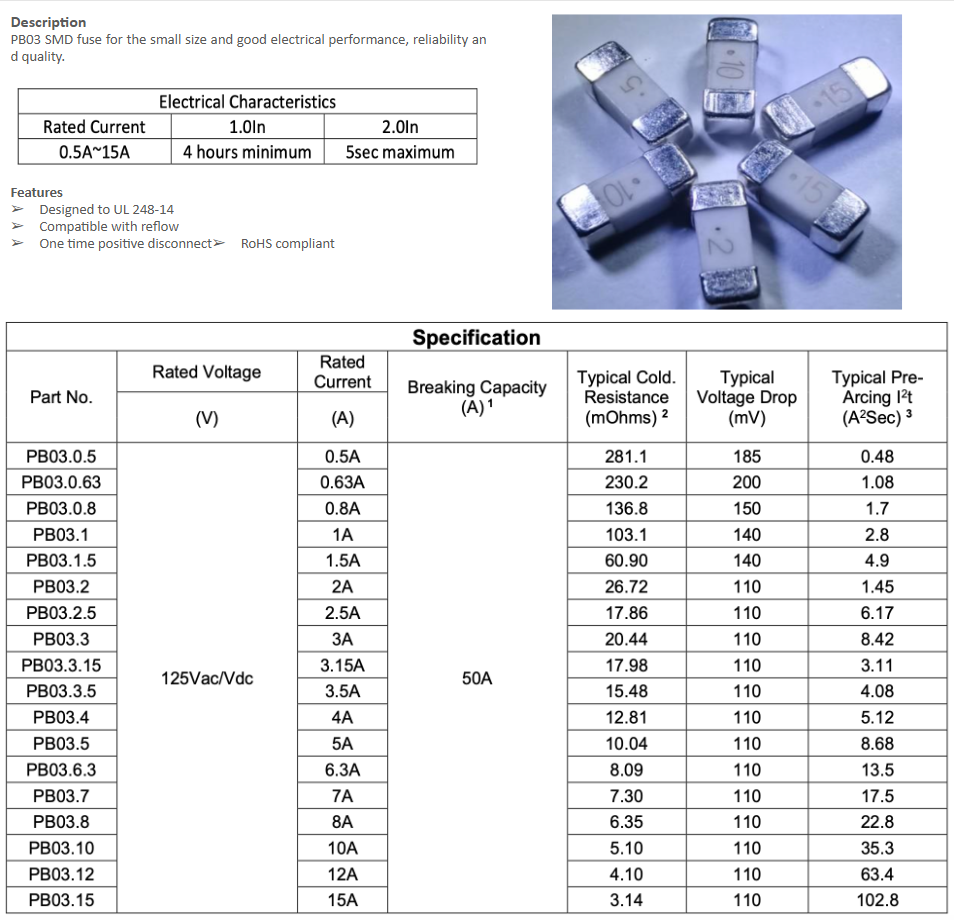

PB03 125VAC/DC F 15A

1.


   AC Interrupting Rating (measured at designated voltage, 100% power factor); DC Interrupting Rating (measured at designated voltage, time constant of less than 50 microseconds, battery source)







2.


   DC Cold Resistance are measured at <10% of rated current in the ambient temperature of 25°C







3.


   Typical Pre-arcing I2t are measured at 10In Current

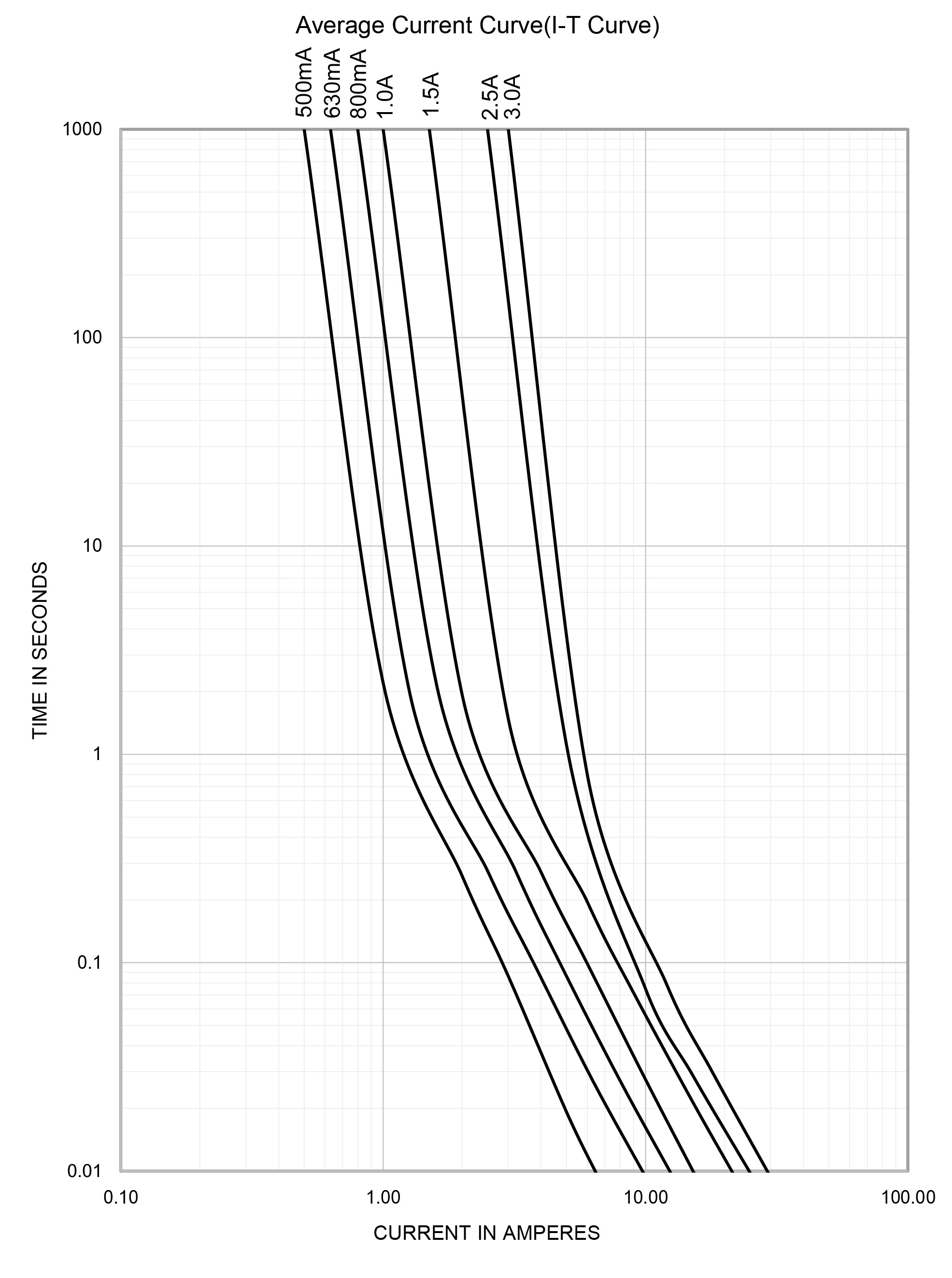

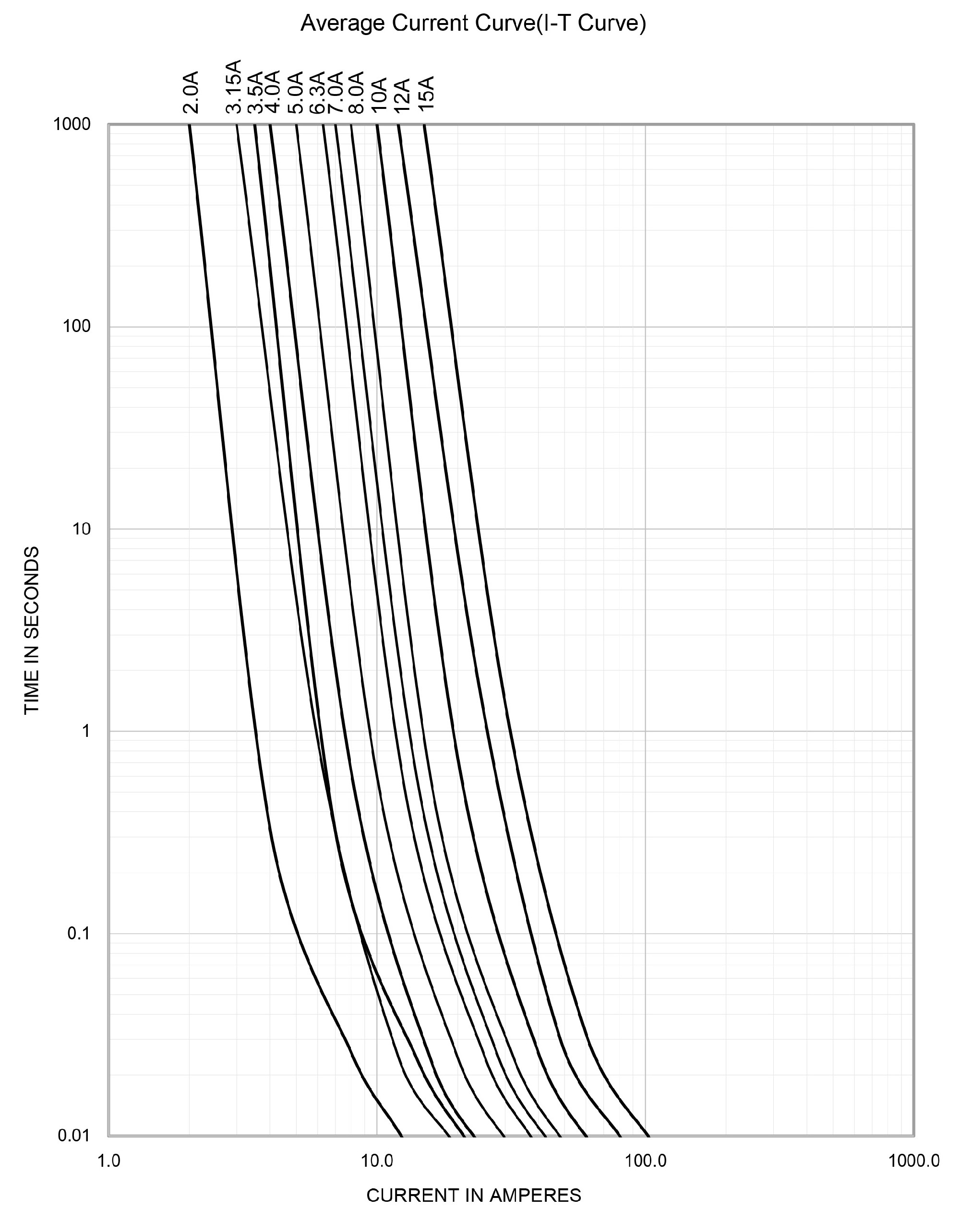

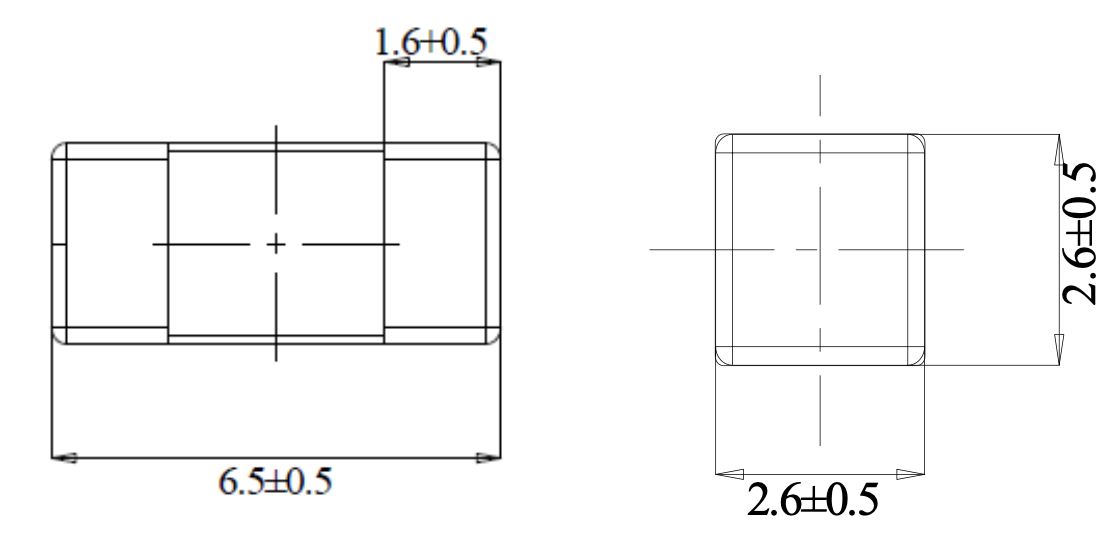

Dimension

Drawing not to scale (Unit: mm)

Soldering method

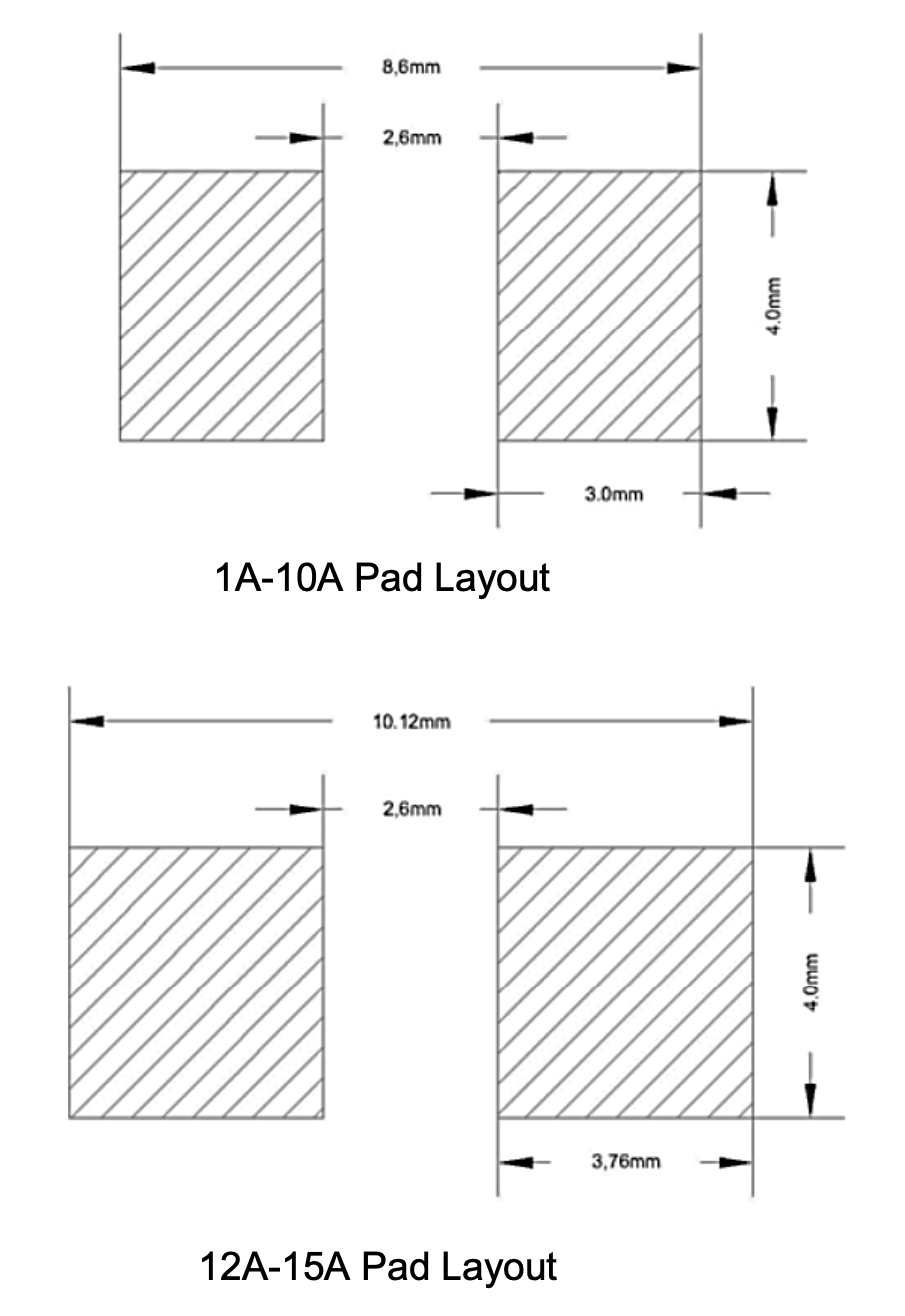

➢ Recommended land pattern (mm)

Recommend Stencil thickness is 0.15mm

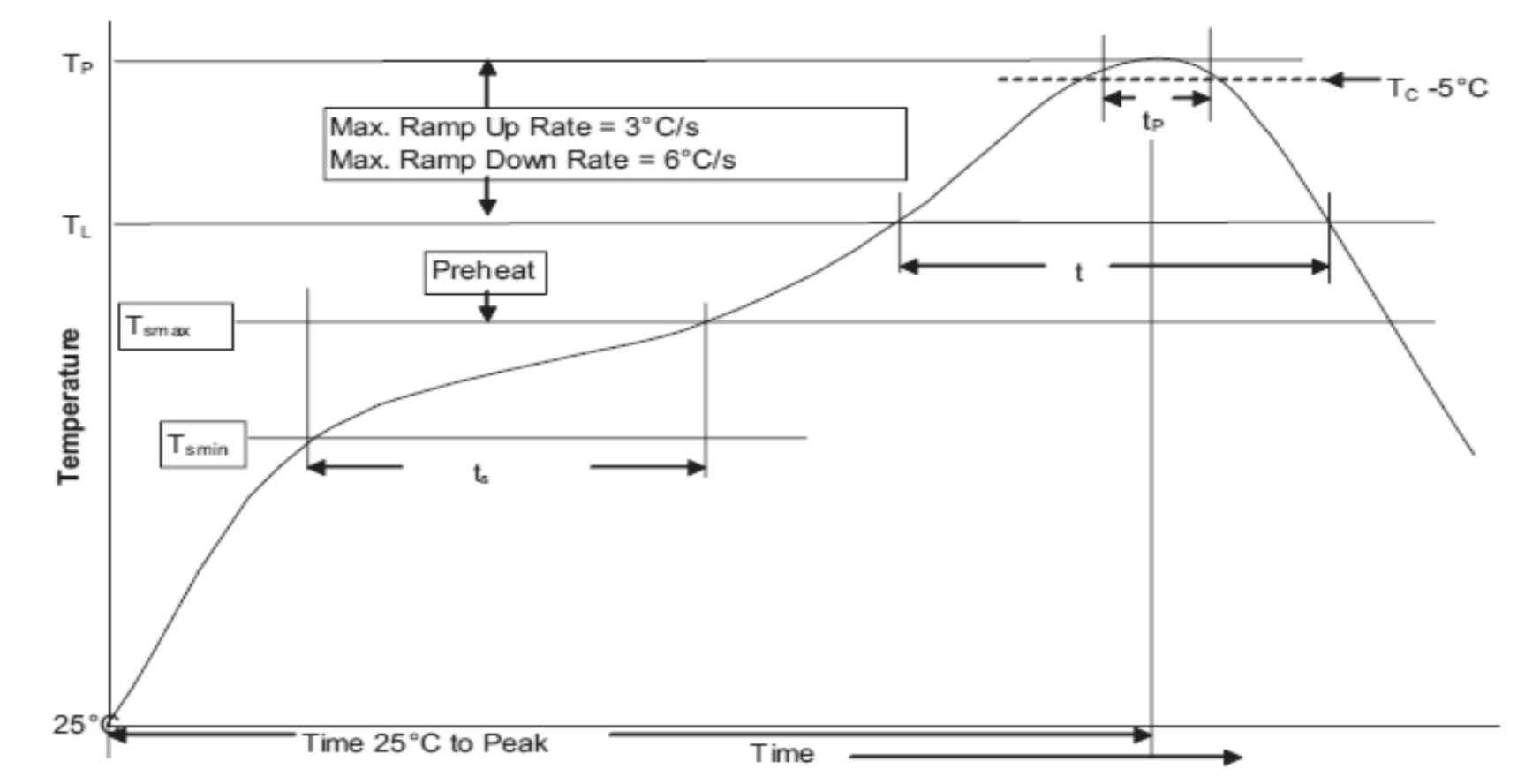

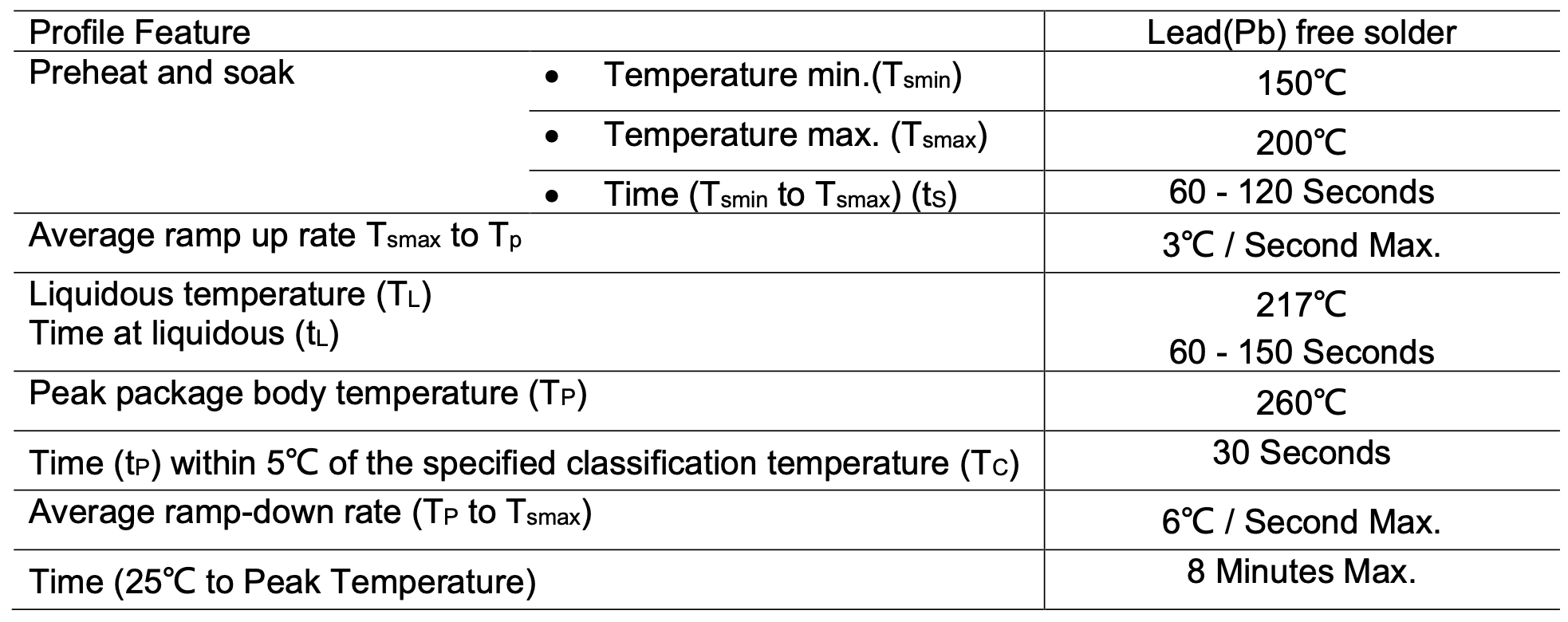

Infrared Reflow
• Temperature: 260° C
• Time: 30 Seconds Maximum

Temperature Derating Curve

Normal Operating Temperature: 25°C± 2°C
Operating Temperature: -55°C to 125°C with proper correction factor applied.

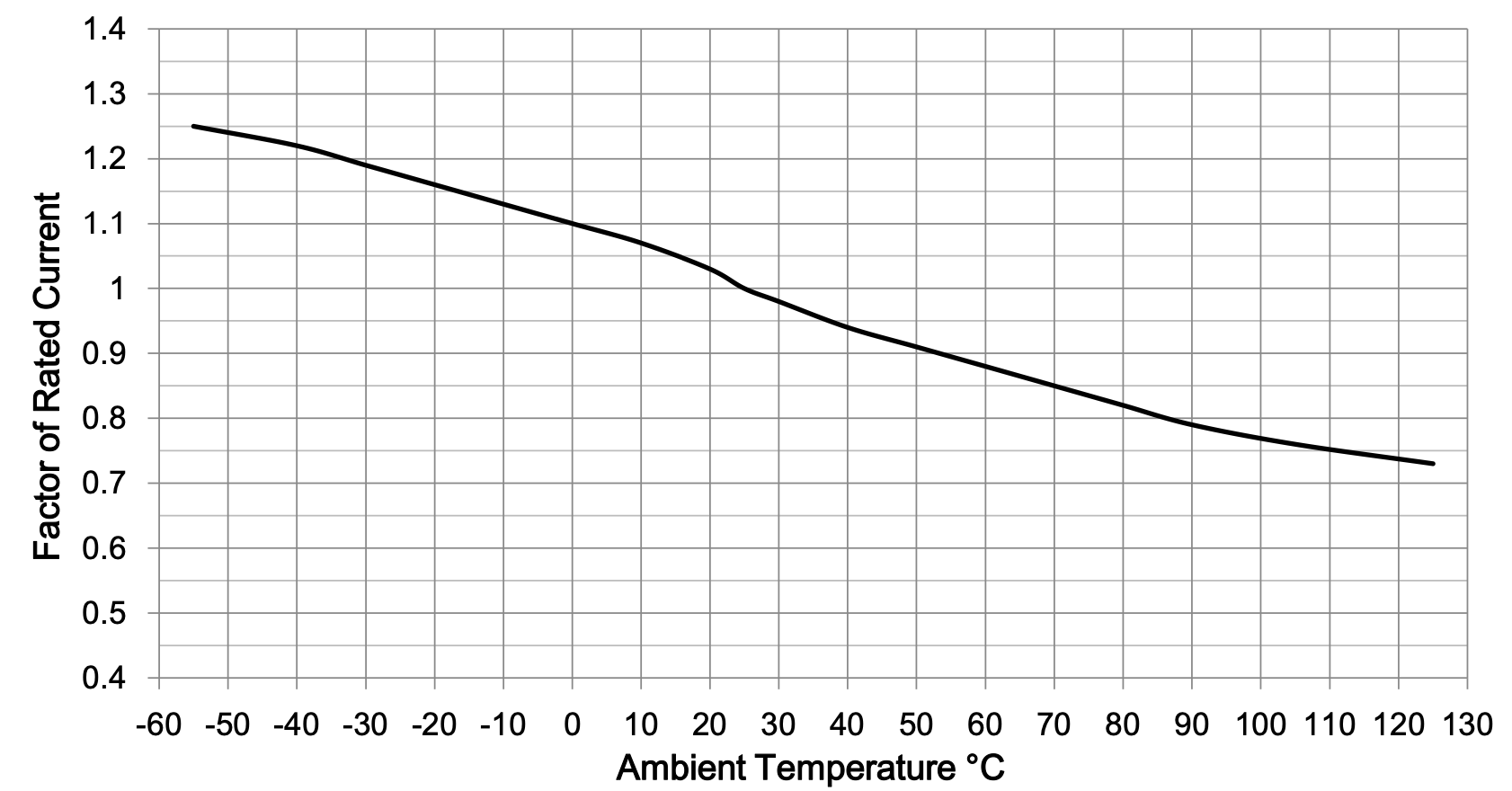

Chart of correction factor
