Electric vehicle power fuses — 500 Vdc, 350-1000 A
|
Catalog symbols:• EV40-(amp) 38.1 mm diameter • EV50-(amp) 50.8 mm diameter • EV60-(amp) 63.5 mm diameter
Description:Eaton's Bussmann@ series Electric Vehicle (EV) fuses for the protection of high power battery charging and management systems up to 500 Vdc in ratings from 350 to 1000 amps.
Specifications:Ratings
• Volts - 500 Vdc • Amps - 350-1000A • Interrupting rating • Max DC - 50 kA • Min DC 200%
|
Packaging：
Features:• Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage battery packs • Higher interrupting rating protects high capacity battery packs needed for vehicle acceleration and range requirements • Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components • Requires up to 48% less space than conventional high speed fuses to help reduce space and weight • Data logging system marks each fuse with a serial number and date code for traceability of Critical to Quality characteristics • To help project the life of the fuse in your application, unique driving profiles and conditions can be simulated to verify proper fuse size and performance under a wide range of driving behaviors • Operation as low as 200% overload provides back up protection to the battery management system • Can be applied in parallel to realize greater ampacity within sizing guidelines |
Catalog numbers:
|
Average @ 50Ka / 500Vdc Catalog no. Current Rating In Pre-arcing I2t Total I2t Power dissipation (A) (A2s) (A2s) at 0.5 In (W)* |
||||
|
38.1 mm diameter case |
||||
|
EV40-350-C |
350 |
10,000 |
39,000 |
14 |
|
EV40-400-C |
400 |
14,000 |
52,000 |
15 |
|
EV40-450-C |
450 |
21,000 |
72,000 |
16 |
|
EV40-500-C |
500 |
27,000 |
90,000 |
17 |
|
EV40-550-C |
550 |
40,000 |
132,000 |
17 |
|
EV40-600-C |
600 |
50,000 |
165,000 |
18 |
|
50.8 mm diameter case |
||||
|
EV50-550-C |
550 |
32,000 |
122,000 |
23 |
|
EV50-600-C |
600 |
40,000 |
143,000 |
24 |
|
EV50-700-C |
700 |
62,000 |
211,000 |
27 |
|
EV50-800-C |
800 |
87,000 |
286,000 |
30 |
|
63.5 mm diameter case |
||||
|
EV60-700-C |
700 |
47,000 |
179,000 |
32 |
|
EV60-800-C |
800 |
76,000 |
273,000 |
33 |
|
EV60-900-C |
900 |
102,000 |
345,000 |
37 |
|
EV60-1000-C |
1000 |
142,000 |
468,000 |
39 |
* 50 percent of fuse label amp rating tested at 230C ± 20C.

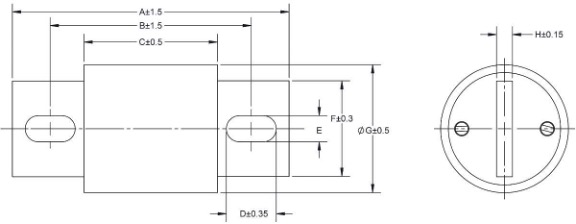

Dimensionsᵻ - mm:
|
Catalogue number |
A |
B |
C |
D |
E |
F |
G |
H |
J |
|
EV40-Amp-C |
110.31 |
78.28 |
53.01 |
19.07 |
10.34 |
25.40 |
38.10 |
6.35 |
0.2 |
|
EV50-Amp-C |
109.91 |
79.93 |
53.01 |
19.86 |
10.36 |
37.97 |
50.80 |
6.35 |
0.3 |
|
EV60-Amp-C |
160.41 |
106.7 |
53.01 |
33.02 |
13.46 |
50.80 |
63.50 |
9.53 |
0.3 |
ᵻ Dimension are nominal values.

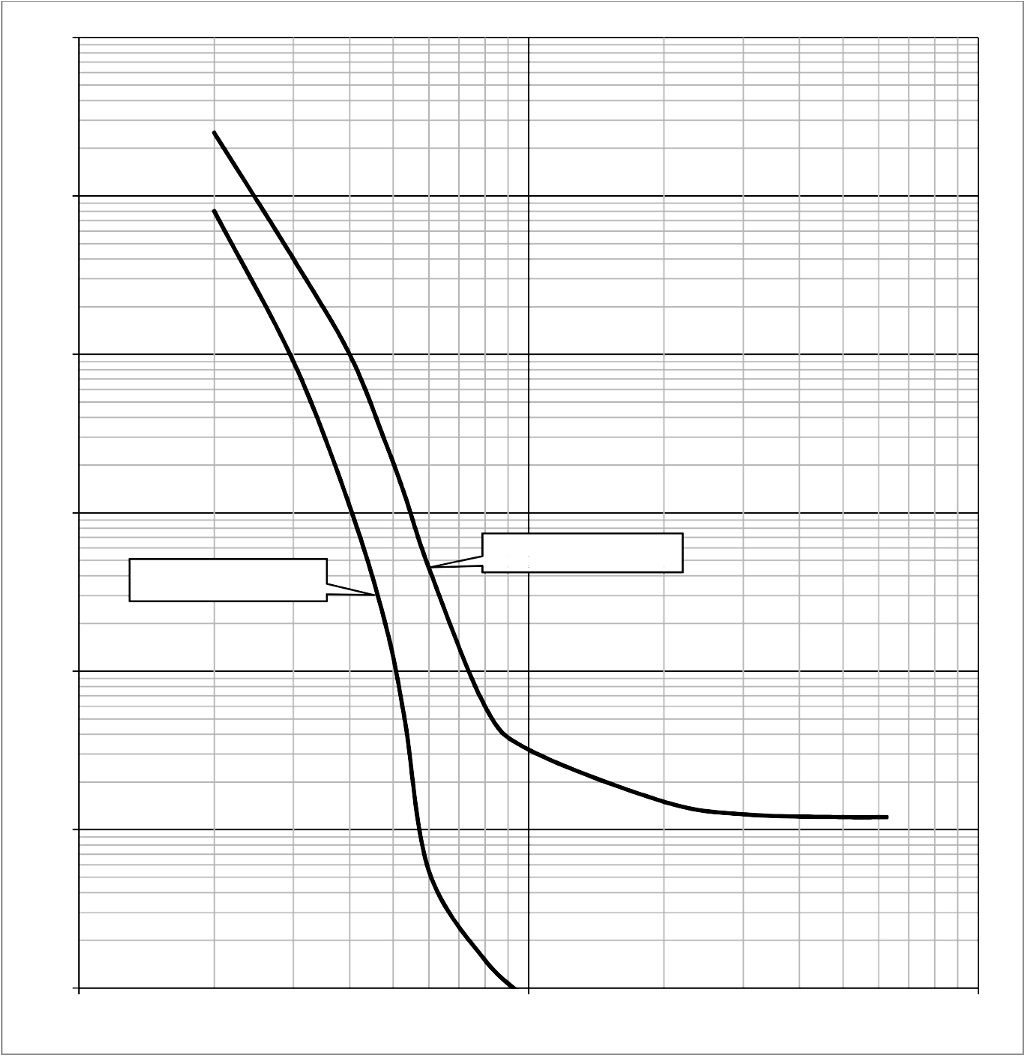

38.1 mm diameter DC minimum melt / maximum clearing time-current curves - multiple of rated current For catalog numbers EV40-350-C to EV40-600-C amp fuses supplied via DC rectifier @500Vdc and time constant (L/R) 2 ms ± 0.5 ms

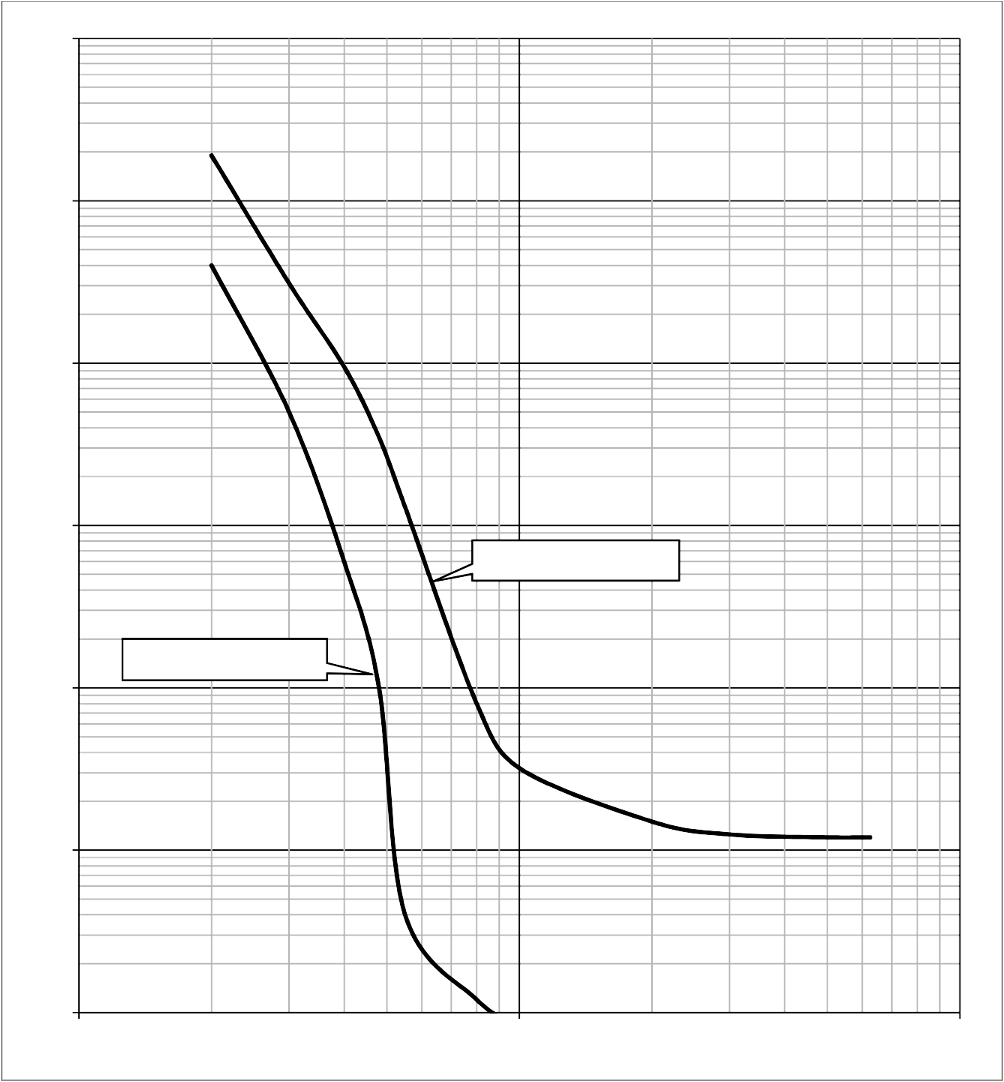

50.8 mm diameter DC minimum melt / maximum clearing time-current curves - multiple of rated current
For catalog numbers EV50-550-C to EV50-800-C amp fuses supplied via DC rectifier @500Vdc and time constant (L/R) 2 ms ± 0.5 ms

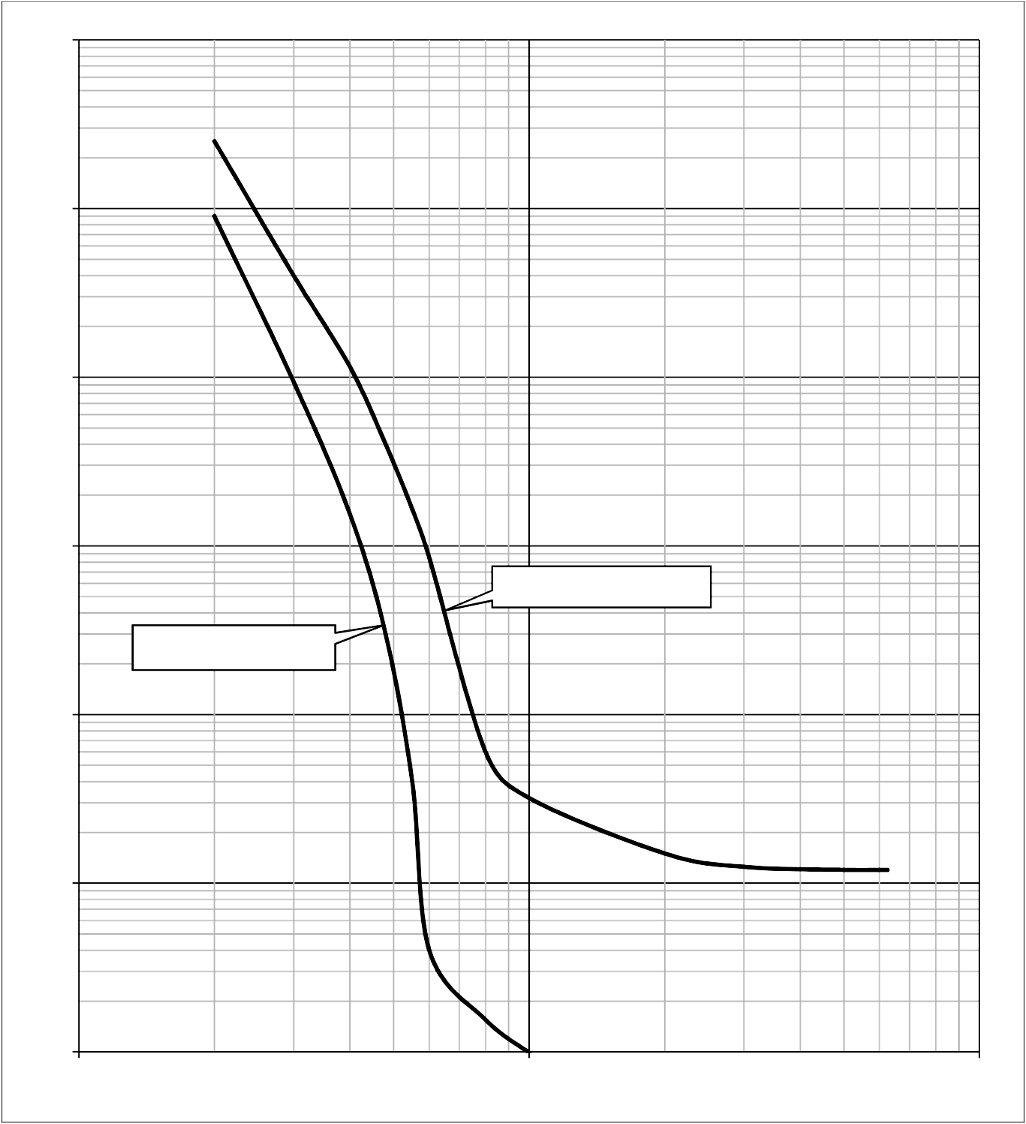

63.5 mm diameter DC minimum melt / maximum clearing time-current curves - multiple of rated current
For catalog numbers EV60-700-C to EV60-1000-C amp fuses supplied via DC rectifier @500Vdc and time constant (L/R) 2 ms ± 0.5 ms
