-Electric vehicle power fuses -500 Vdc. 15-60A
|
Catalog symbol:

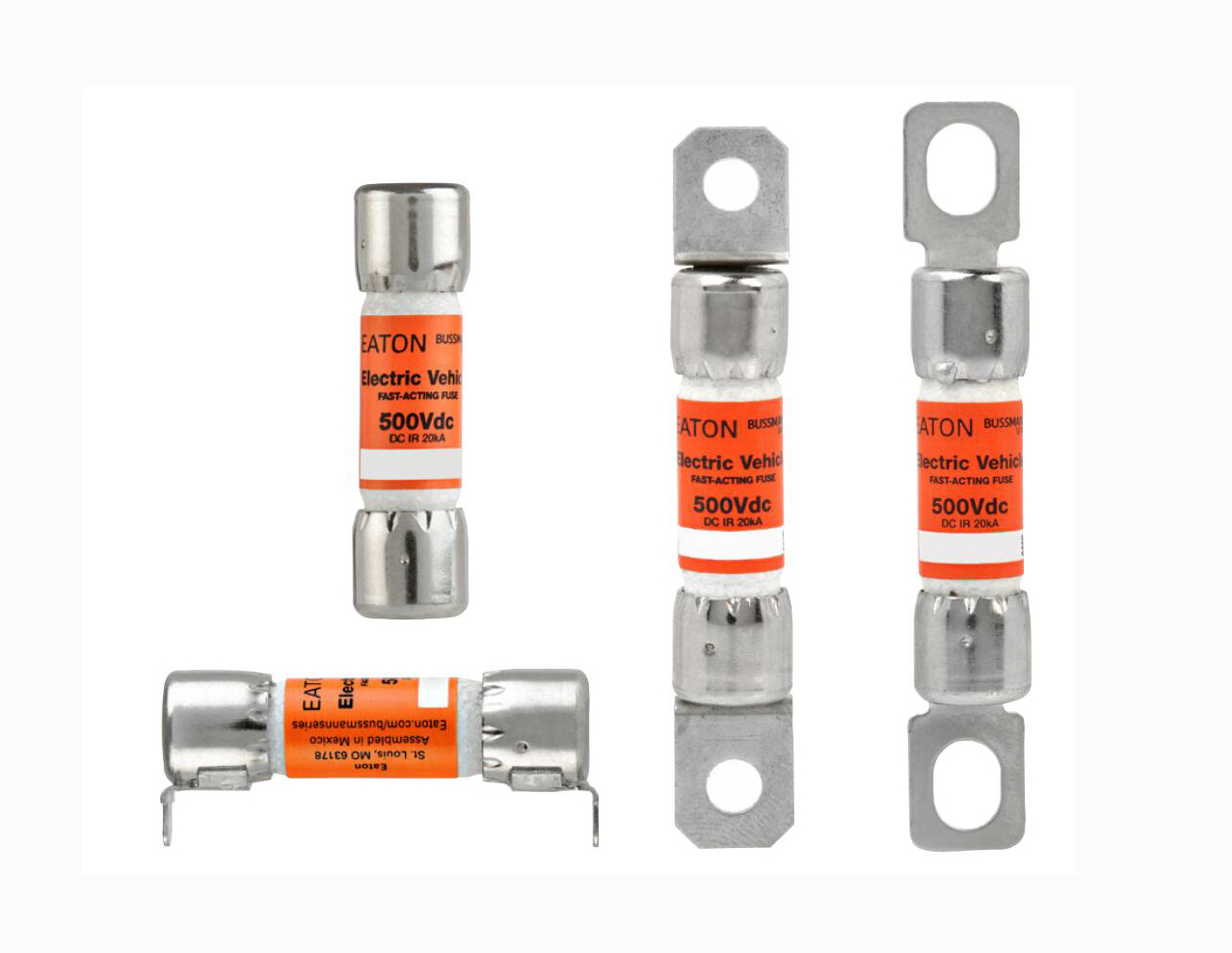

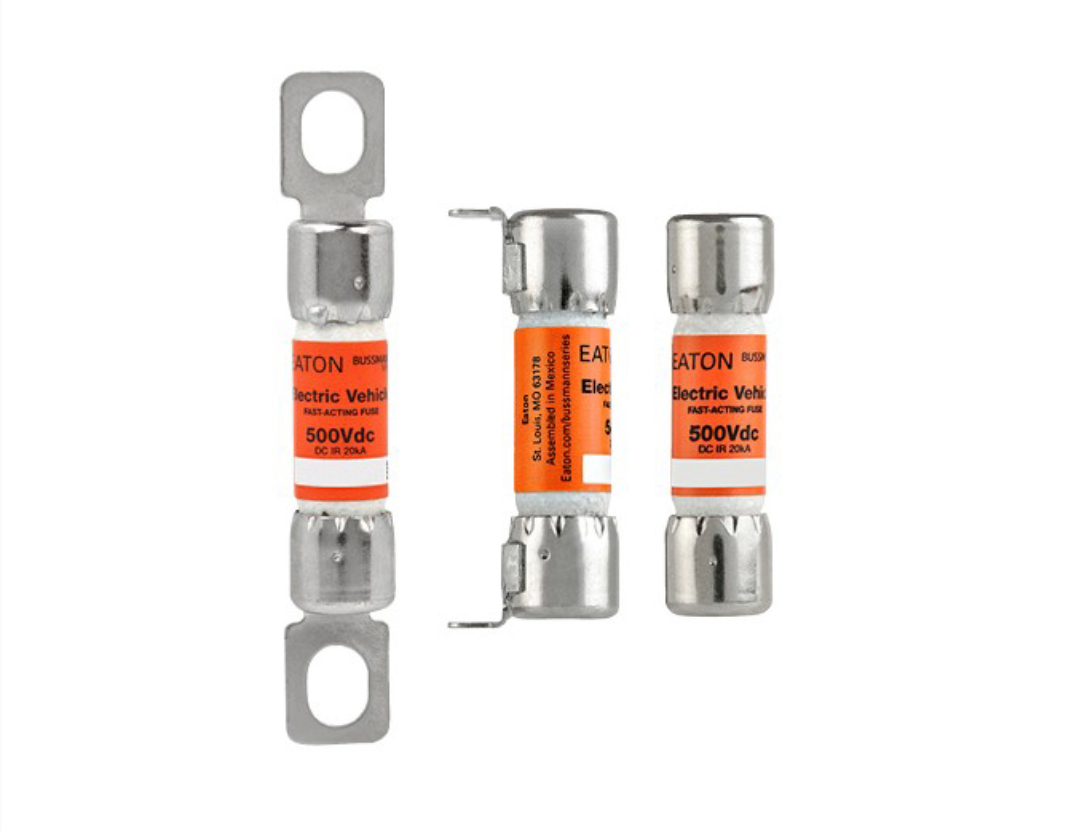

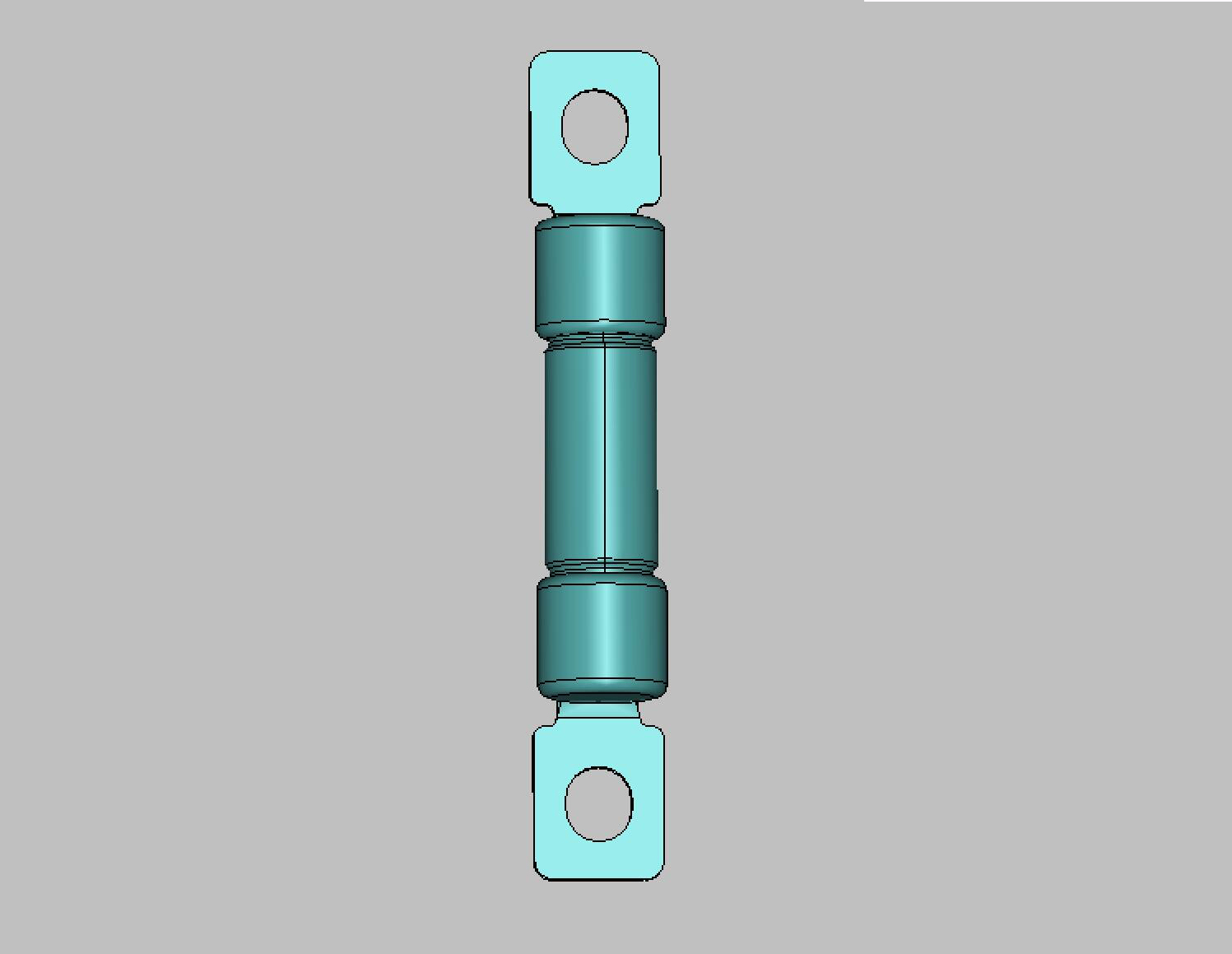

· EV10-(amp) ferrule · EV10-(amp)-B axial bolt-on · EV10-(amp)-T flush bolt-on · EV10-(amp)-1P PCB terminal
Description:
Eaton’s Bussmann series Electric Vehicle (EV) full range fuses for the® protection of auxiliary electrical systems up to 500 Vdc in ratings from 15 to 60 amps.
Specifications:
Ratings
· Volts - 500 Vdc · Amps – 15-60 A · Interrupting rating · Max DC – 20 kA · Min DC 135%
|
Agency information
· Designed to: · JASO D622 · ISO 8820-8 · Manufactured under ITAF16949 quality system for compliance with automotive requirements · RoHS compliant · REACH declaration available upon request
Packaging· EV10-(amp) ferrule fuses · 10 per carton · 500 per container · EV10-(amp)-1P PCB fuses · 10 per carton · 480 per container · EV10-(amp)-B axial bolt-on fuses · 270 per container · EV10-(amp)-T flush bolt-on fuses · 270 per container
Features:
· Compact 10x38 mm size is easily mounted with multiple terminal options · Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage battery packs · Higher interrupting rating protects high capacity battery packs needed for vehicle acceleration and range require- ments · Operation as low as 135% overload provides full range protection for overload and high fault current conditions · Can be selectively coordinated with upstream battery and charging circuit fuses
Installation Suggestion:
Suggest to use screw and washer assembled. Flange screw is not recommended.
M4 screw, Tightening Torque：2+/-0.5 Nm M5 screw, Tightening Torque：4.5+/-1 Nm |

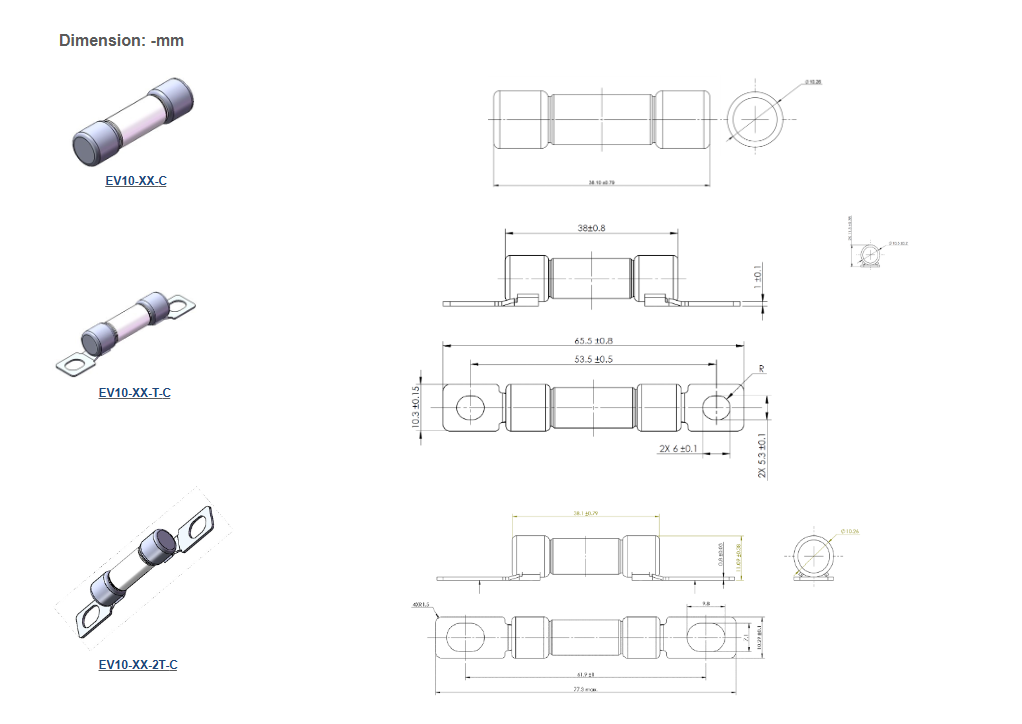

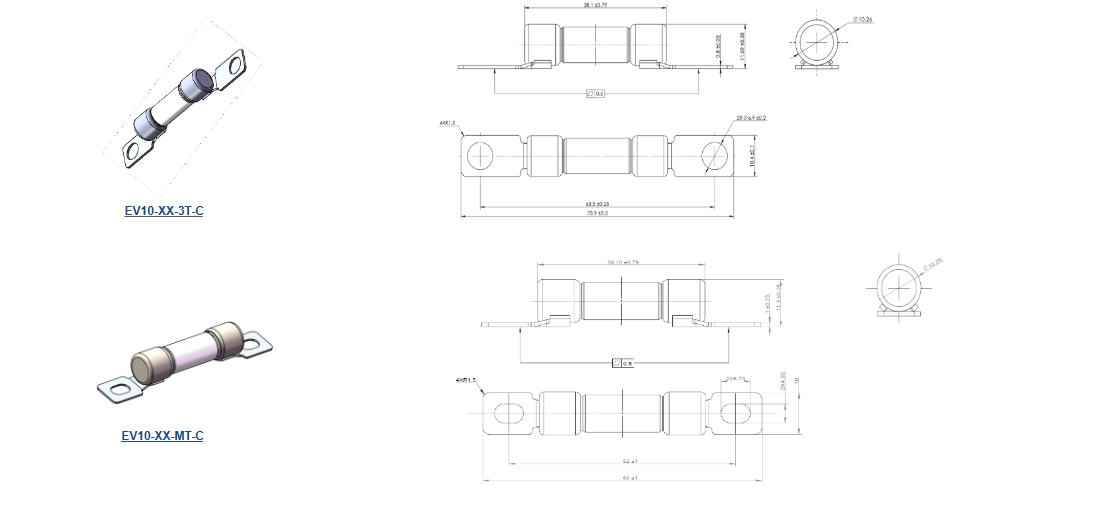

Dimension: -mm
Catalog Number List
|
Ferrule |
-T |
-2T |
-3T |
-MT |
-B |
-P |
-1P |
|
EV10-15-C * |
EV10-15-T-C |
EV10-15-2T-C |
EV10-15-3T-C * |
EV10-15-MT-C * |
EV10-15-B-C |
EV10-15-P-C * |
EV10-15-1P-C * |
|
EV10-20-C * |
EV10-20-T-C |
EV10-20-2T-C |
EV10-20-3T-C * |
EV10-20-MT-C * |
EV10-20-B-C |
EV10-20-P-C * |
EV10-20-1P-C * |
|
EV10-25-C * |
EV10-25-T-C |
EV10-25-2T-C |
EV10-25-3T-C * |
EV10-25-MT-C * |
EV10-25-B-C |
EV10-25-P-C * |
EV10-25-1P-C * |
|
EV10-30-C |
EV10-30-T-C |
EV10-30-2T-C |
EV10-30-3T-C * |
EV10-30-MT-C |
EV10-30-B-C |
EV10-30-P-C * |
EV10-30-1P-C |
|
EV10-40-C |
EV10-40-T-C |
EV10-40-2T-C |
EV10-40-3T-C * |
EV10-40-MT-C |
EV10-40-B-C |
EV10-40-P-C * |
EV10-40-1P-C |
|
EV10-50-C |
EV10-50-T-C |
EV10-50-2T-C |
EV10-50-3T-C * |
EV10-50-MT-C |
EV10-50-B-C |
EV10-50-P-C * |
EV10-50-1P-C |
|
EV10-60-C * |
EV10-60-T-C |
EV10-60-2T-C |
EV10-60-3T-C * |
EV10-60-MT-C * |
EV10-60-B-C |
EV10-60-P-C * |
EV10-60-1P-C * |
Remark: for the part with “ * ”, please check with Bussmann sales.
Technical Parameter
|
Technical data |
Voltage Rating (V) |
Current Rating (A) |
Pre-arcing I2t (A2S) |
Total I2t (A2s) |
Power Loss at In (W) |
Power Loss at 0.8In (W) |
|
|
Interrupting rating |
15 |
20 |
70 |
4 |
2 |
||
|
max |
20KA |
500Vdc |
60 |
6,710 |
20,120 |
10 |
6 |
|
min |
200% of In |
||||||
|
Operating class |
gR |
||||||

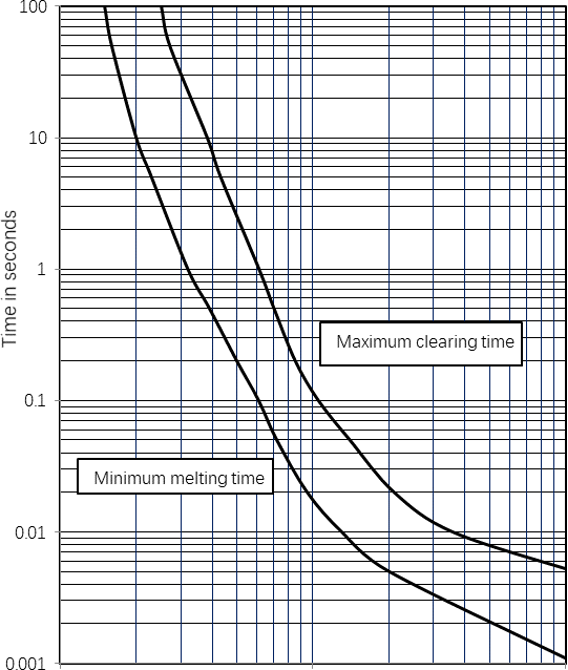

T-C Curves for 15A - 60A
Multiple of rated current

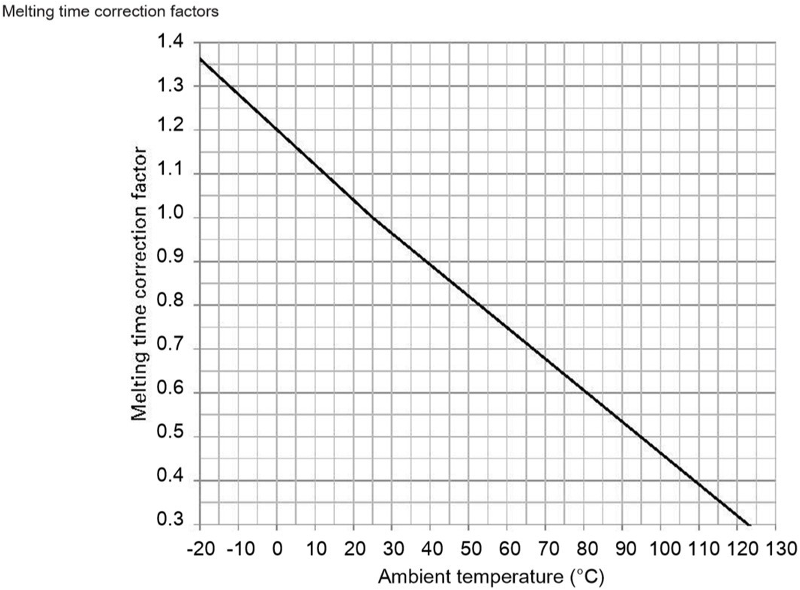

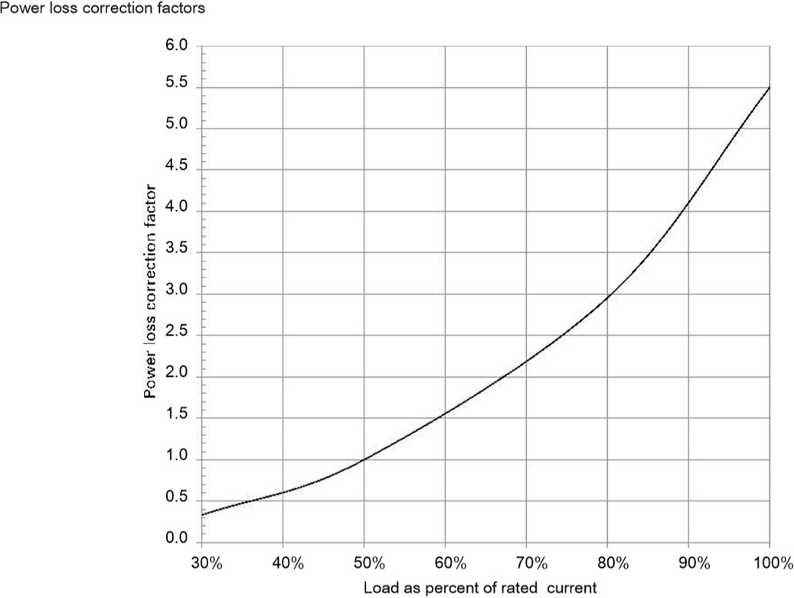

Correction Factors
