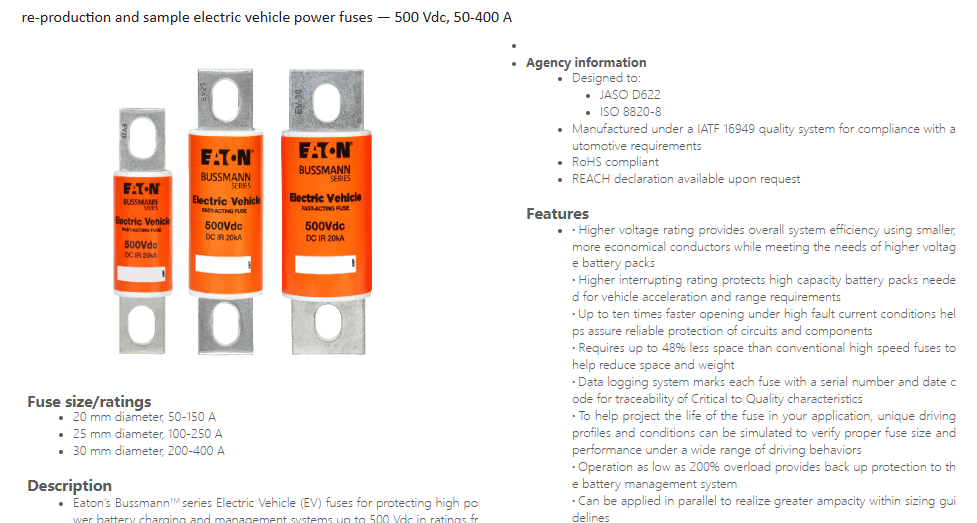

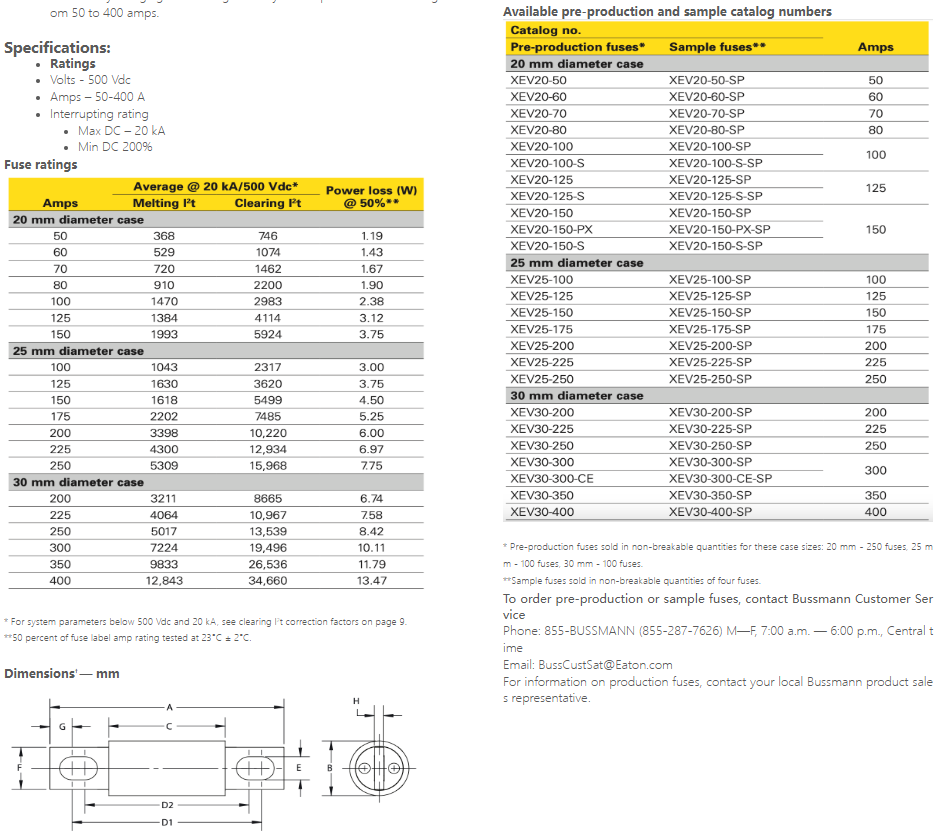

EV FUSE 500VDC 50-400A

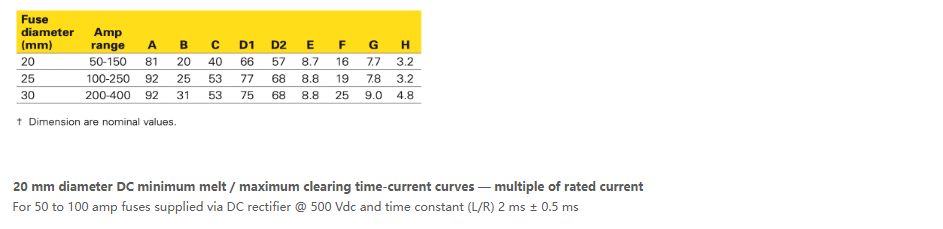

 20 mm diameter DC minimum melt / maximum clearing time-current curves — multiple of rated current

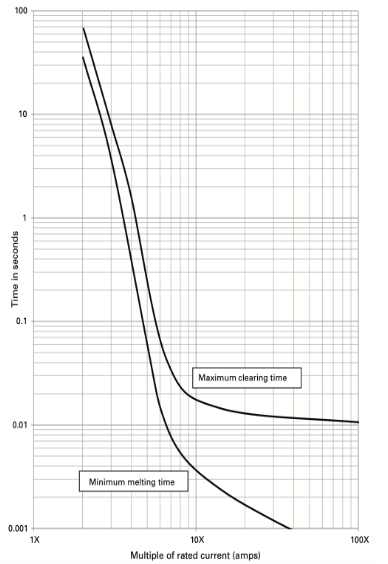

                          For 125 to 150 amp fuses supplied via DC rectifier @ 500 Vdc and time constant (L/R) 2 ms ± 0.5 ms

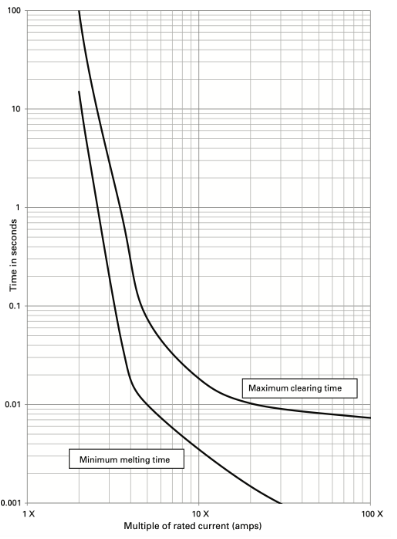

                       25 mm diameter DC minimum melt / maximum clearing time-current curves — multiple of rated current

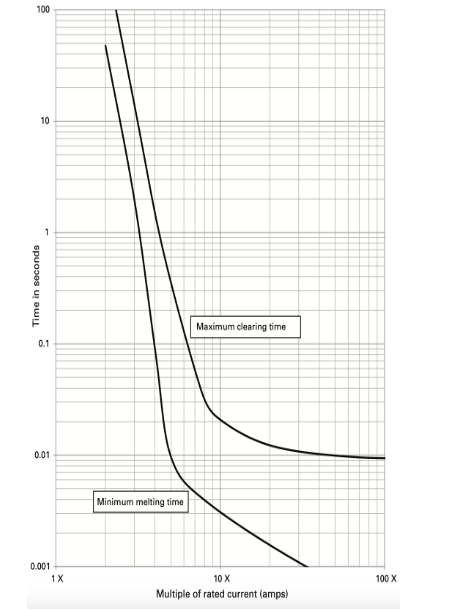

                       For 100 to 150 amp fuses supplied via DC rectifier @ 500 Vdc and time constant (L/R) 2 ms ± 0.5 ms

                     25 mm diameter DC minimum melt / maximum clearing time-current curves — multiple of rated current

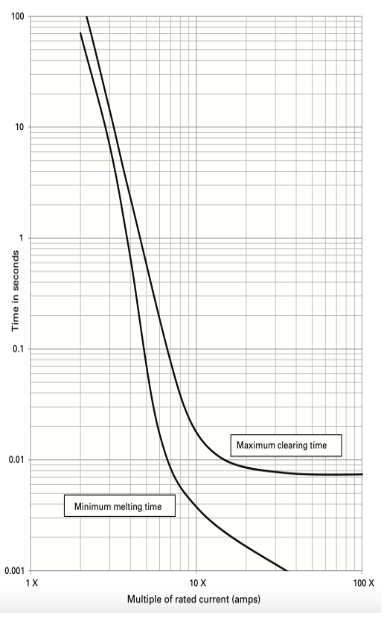

                     For 175 to 250 amp fuses supplied via DC rectifier @ 500 Vdc and time constant (L/R) 2 ms ± 0.5 ms

                                30 mm diameter DC minimum melt / maximum clearing time-current curves — multiple of rated current

                                For 200 to 400 amp fuses supplied via DC rectifier @ 500 Vdc and time constant (L/R) 2 ms ± 0.5 ms

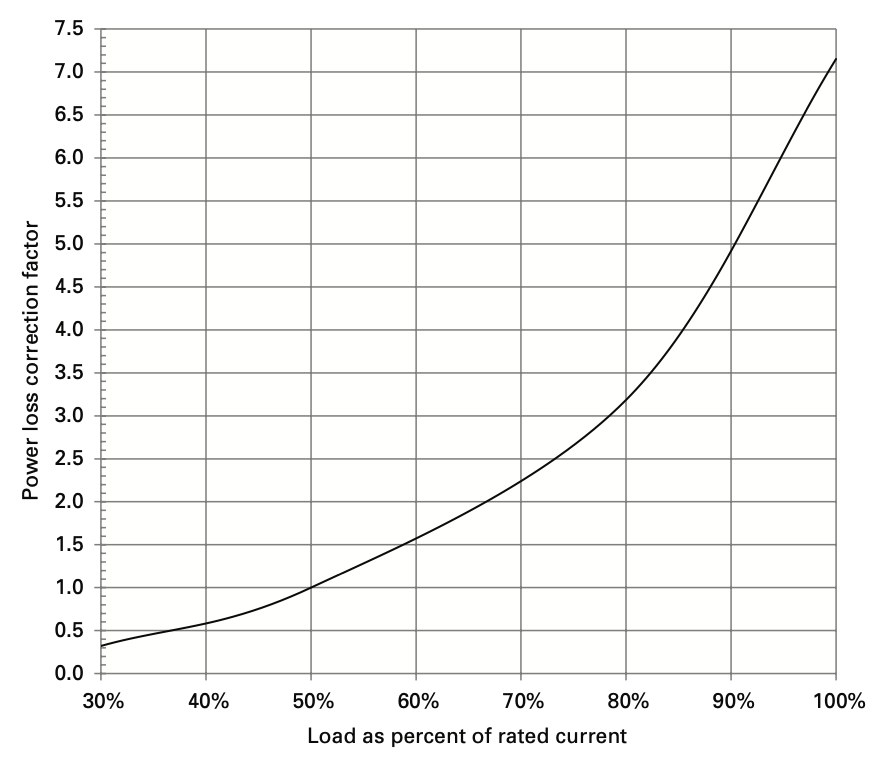

                             Power loss correction factors

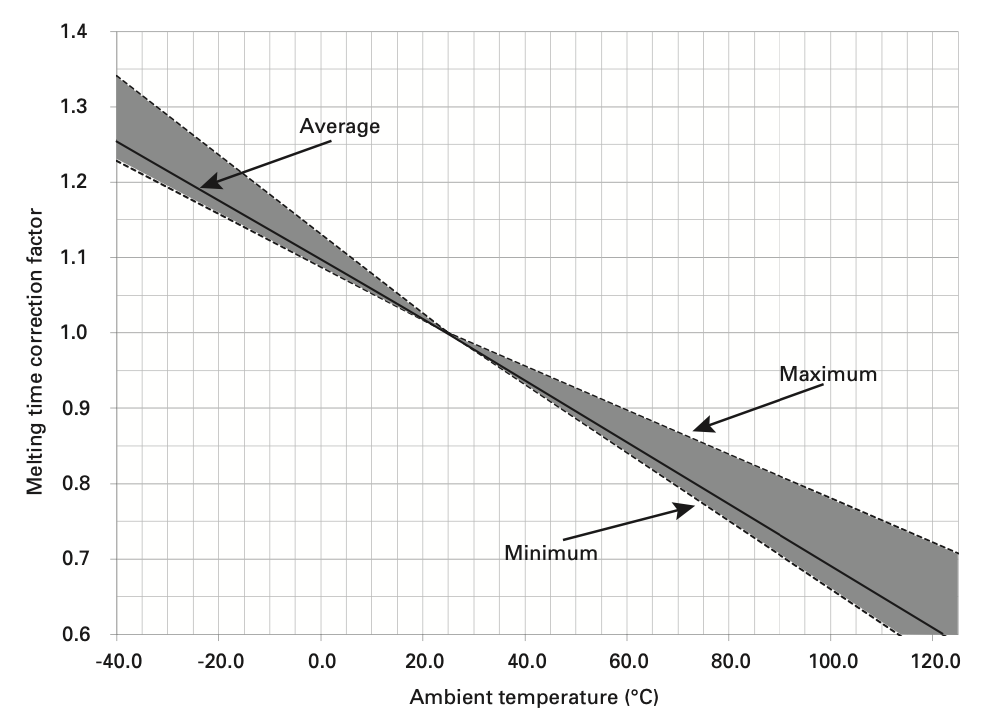

                                 Melting time correction factors (tolerance band)*

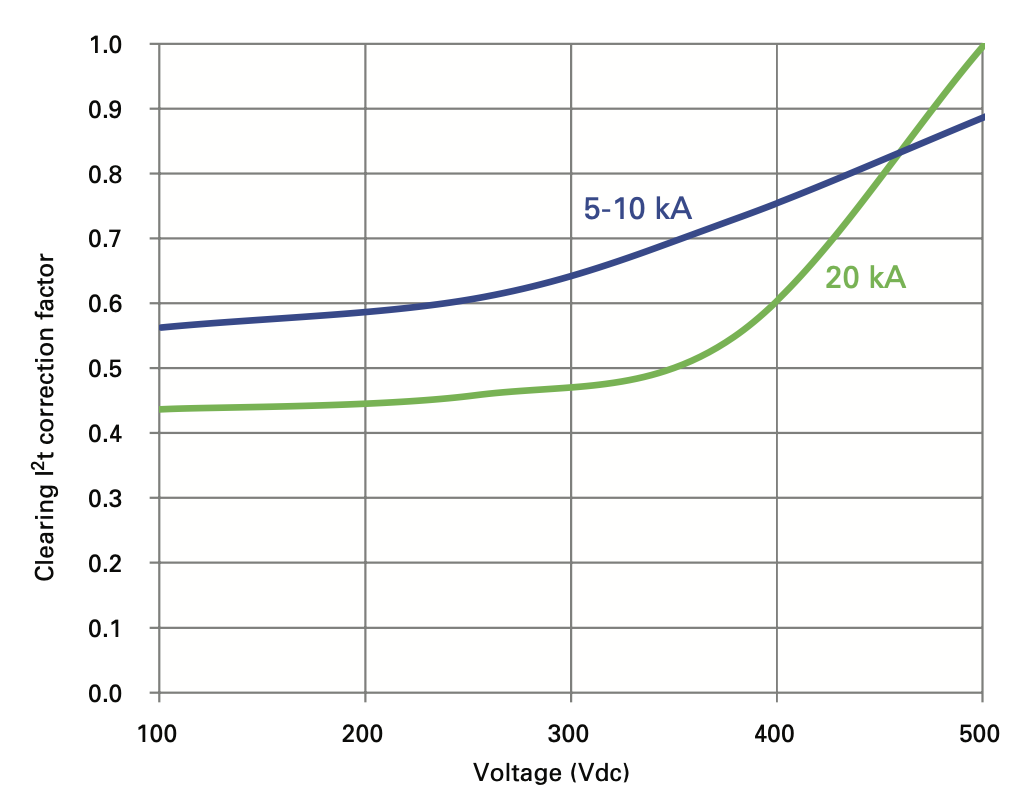

                                       Clearing I2t correction factors — 5 to 10 kA and 20 kA

                                                * Correction factor applies to I2t clearing at 20 kA in the catalog number table on page 2.
